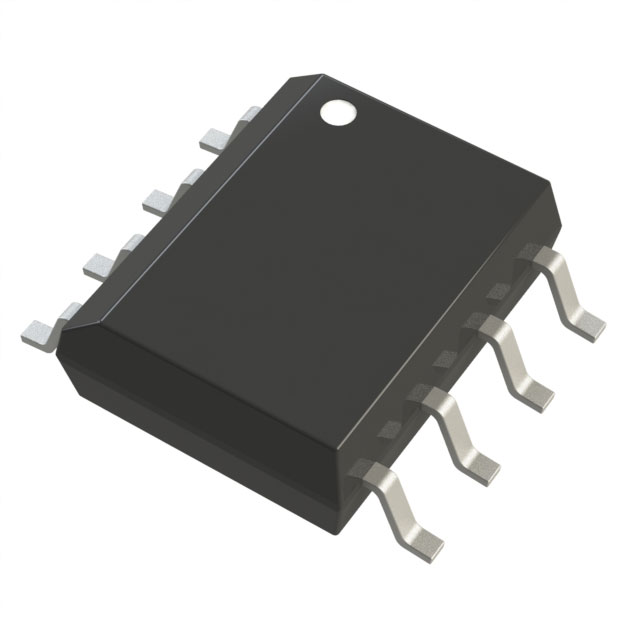

AP7361EA-10SPR-13 is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists Diodes Incorporated. Its product description is IC REG LINEAR 1V 1A 8-SO-EPR. Review the specifications below when checking this part for your BOM.
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for AP7361EA-10SPR-13
- Description：IC REG LINEAR 1V 1A 8-SO-EPR
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR),Cut Tape (CT)
- Output Configuration：Positive
- Output Type：Fixed
- Number of Regulators：1
- Voltage - Input (Max)：6V
- Voltage - Output (Min/Fixed)：1V
- Voltage - Output (Max)：-
- Voltage Dropout (Max)：-
- Current - Output：1A
- Current - Quiescent (Iq)：91 µA
- Current - Supply (Max)：-
- PSRR：-
- Control Features：Current Limit, Enable
- Protection Features：Over Current, Over Temperature, Short Circuit
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package：8-SO-EPR
- Grade：-
- Qualification：-
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for AP7361EA-10SPR-13
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview
The AP7361EA-10SPR-13 is a fixed-output low dropout linear regulator manufactured by Diodes Incorporated. It provides a stable 1.0V output with a maximum current of 1A. The device operates within an input voltage range of 2.2V to 6.0V and features a typical quiescent current of 68µA. Packaged in SO-8EPR, it includes enable functionality, current limiting, and thermal shutdown protection for reliable operation.
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary
- Fixed 1.0V output voltage with ±1% accuracy
- Ultra-low dropout performance at full load
- Integrated enable pin for power management
- Built-in thermal shutdown and foldback short-circuit protection
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications
- Battery-powered portable devices
- Audio and video equipment
- Laptop computers
- Set-top boxes
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes
Verify the specific suffix SPR indicates the SO-8EPR package configuration. Confirm the ordering code matches the required 1.0V fixed output variant. Ensure compatibility with standard surface-mount reflow processes. Check for RoHS compliance status as per manufacturer documentation.
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes
Select this component when a precise 1.0V rail is required from a 2.2V to 6.0V source. Consider the SO-8EPR package for enhanced thermal dissipation compared to smaller footprints. Evaluate the need for the enable feature versus tying the pin high for constant operation.
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context
This part belongs to the AP7361EA family of 1A LDO regulators. The series offers both adjustable and fixed voltage options. The EA designation typically denotes packages with exposed pads or specific thermal characteristics suitable for higher power applications.
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations
Direct substitutes include other AP7361EA variants with different output voltages if voltage adjustment is possible via external resistors, though fixed versions are not interchangeable electrically. Cross-reference with other 1A LDOs featuring similar dropout and package dimensions.
