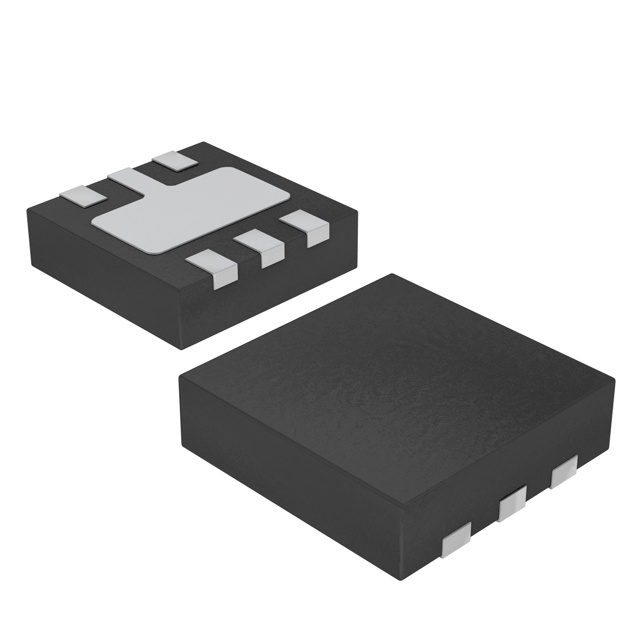

AP7365-33SNG-7

$0.70

Description：IC REG LIN 3.3V 600MA 6DFN2020
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b6796b89ac7b Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: Diodes Incorporated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AP7365-33SNG-7 is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists Diodes Incorporated. Its product description is IC REG LIN 3.3V 600MA 6DFN2020. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for AP7365-33SNG-7

Description：IC REG LIN 3.3V 600MA 6DFN2020
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR),Cut Tape (CT)
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：6V
Voltage - Output (Min/Fixed)：3.3V
Voltage - Output (Max)：-
Voltage Dropout (Max)：0.4V @ 600mA
Current - Output：600mA
Current - Quiescent (Iq)：80 µA
Current - Supply (Max)：-
PSRR：65dB (1kHz)
Control Features：Enable
Protection Features：Over Current, Over Temperature
Operating Temperature：-40°C ~ 85°C
Mounting Type：Surface Mount
Package / Case：6-UDFN Exposed Pad
Supplier Device Package：U-DFN2020-6
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for AP7365-33SNG-7

AP7365-33SNG-7

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The AP7365-33SNG-7 is a fixed-output linear regulator from Diodes Incorporated, providing a stable 3.3V output with a maximum current of 600mA. It operates within an input voltage range of 2V to 6V and features a typical quiescent current of 35µA. The device incorporates built-in current limit and thermal shutdown protection. It is housed in a U-DFN2020-6 package and supports an ambient operating temperature range from -40°C to +85°C.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Integrated low dropout linear regulator architecture with enable control
Built-in overcurrent and thermal shutdown circuitry for fault protection
Capable of fast transient response suitable for dynamic load applications

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

FPGA and DSP core or I/O power supply
Servers and notebook computers
Low and medium power consumer electronics

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific suffix 'SNG' confirms the U-DFN2020-6 package type and 3.3V fixed output configuration. Confirm compliance with RoHS3 and Halogen-free requirements as specified by the manufacturer. Ensure the component source is authorized to avoid counterfeit risks.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a compact surface-mount solution is required for 3.3V regulation. The U-DFN2020-6 package offers a small footprint suitable for space-constrained designs. Verify that the application load does not exceed the 600mA continuous output rating.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the AP7365 series of low dropout regulators designed for portable and battery-powered devices. The series provides options for both adjustable and fixed output voltages across various packages including SOT25, SOT89, and SOT223.
