Product Detailed Parameters

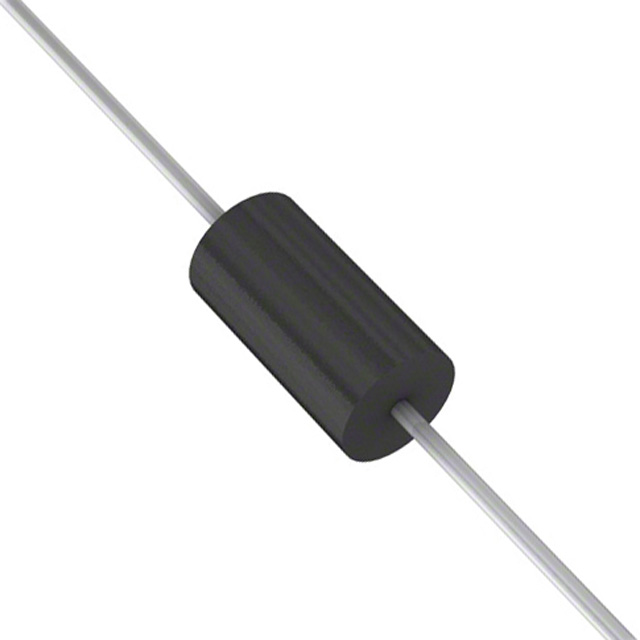

- Description：DIODE SCHOTTKY 40V 3A DO15
- Series：-
- Mfr：Diodes Incorporated
- Package：Bulk
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：40 V
- Current - Average Rectified (Io)：3A
- Voltage - Forward (Vf) (Max) @ If：500 mV @ 3 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：500 µA @ 40 V
- Capacitance @ Vr, F：-
- Mounting Type：Through Hole
- Package / Case：DO-204AC, DO-15, Axial
- Supplier Device Package：DO-15
- Operating Temperature - Junction：-50°C ~ 125°C
- Grade：-
- Qualification：-
Download product information
Overview
The APD340VG-E1 is a low voltage dual Schottky barrier rectifier manufactured by Diodes Incorporated. It features a maximum repetitive peak reverse voltage (VRRM) of 40 V and an average rectified forward current (IF(AV)) of 3 A. The device exhibits a maximum forward voltage (VF) of 0.5 V at +25°C and a maximum reverse current (IR) of 0.5 mA at rated VR and +25°C. It operates within a junction temperature range of -50 to +125°C and utilizes the DO-214AC surface-mount package.
Feature Summary
- Dual Schottky configuration designed for medium voltage operation with low switching losses
- Guard-ring structure implemented for enhanced stress protection
- Lead-free finish compliant with RoHS directives and free of halogens and antimony
Applications
- Low voltage high frequency inverters
- DC-DC converters
- Free wheeling circuits
- Polarity protection
Procurement Notes
Verify that the specific suffix VG-E1 aligns with the manufacturer's standard ordering nomenclature, as official datasheets list APD340VRTR-G1. Confirm compliance requirements including RoHS and Green status. Ensure the component meets the specified thermal resistance and moisture sensitivity levels for the intended assembly process.
Selection Notes
Select this component for applications requiring low forward voltage drop and high surge current capacity in high-frequency environments. The DO-214AC package facilitates surface mount integration. Evaluate thermal management needs against the 75 °C/W thermal resistance rating to ensure reliable operation within the specified junction temperature limits.
Part Context
This part belongs to the APD340 series of Schottky barrier rectifiers from Diodes Incorporated. These devices are engineered for power conversion systems where efficiency and noise reduction are critical. The series supports various packaging options to accommodate different manufacturing constraints while maintaining consistent electrical performance characteristics.
Replacement Considerations
Consult official substitution guides for equivalent dual Schottky rectifiers with matching 40V and 3A ratings. Verify pinout compatibility and package dimensions before implementation.
