Product Detailed Parameters

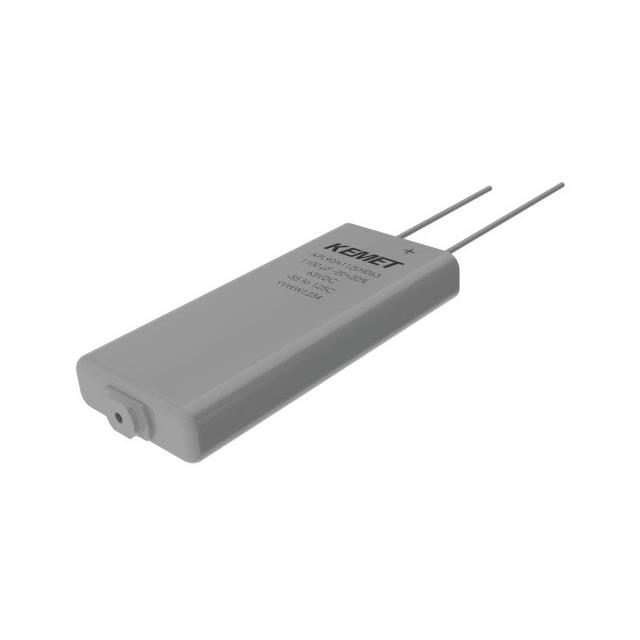

- Description：CAP ALUM POLY 1.1MF 20% 63V TH
- Series：APL90
- Mfr：KEMET
- Package：Bulk
- Type：Polymer
- Capacitance：1.1 mF
- Tolerance：±20%
- Voltage - Rated：63 V
- ESR (Equivalent Series Resistance)：7.5mOhm
- Lifetime @ Temp.：2000 Hrs @ 125°C
- Operating Temperature：-55°C ~ 125°C
- Ratings：AEC-Q200
- Applications：Automotive
- Ripple Current @ High Frequency：25.8 A @ 100 kHz
- Lead Spacing：0.394" (10.00mm)
- Size / Dimension：2.118" L x 0.945" W (53.80mm x 24.00mm)
- Height - Seated (Max)：0.335" (8.50mm)
- Surface Mount Land Size：-
- Mounting Type：Through Hole
- Package / Case：FlatPack, Tabbed
- Ripple Current @ Low Frequency：-
- Features：-
