Product Detailed Parameters
- Description：CMC 3A 2LN 1.02KOHM SMD AEC-Q200
- Series：APPM
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：17mOhm
- Voltage Rating - DC：125V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.295" L x 0.236" W (7.50mm x 6.00mm)
- Height (Max)：0.150" (3.80mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：1.02 kOhms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

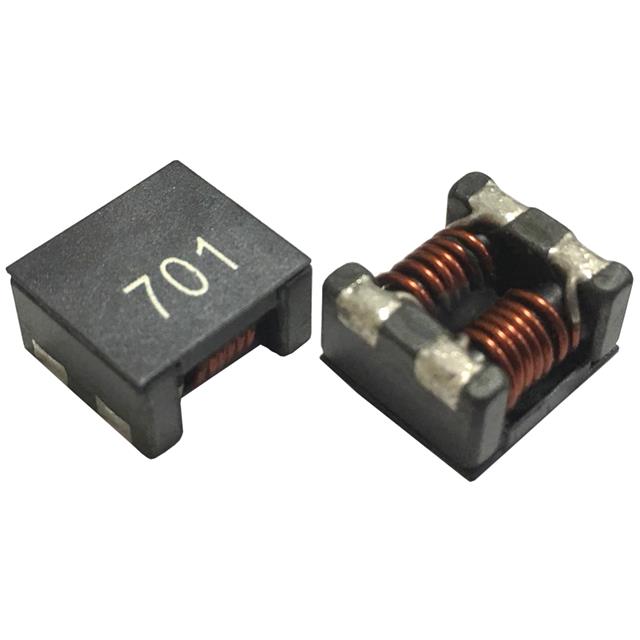

The APPM00070638102XY0 is a two-line common mode choke manufactured by Pulse Electronics, designed for surface mount technology (SMD/SMT) PCB mounting. It operates within an impedance range of 1.02 kOhms at a test frequency of 100 MHz. The component supports a maximum DC current of 3 A with a maximum DC resistance of 17 mOhms. It functions in unshielded configurations across a temperature range from -40 C to +125 C. Physical dimensions are specified as 7 mm length, 6 mm width, and 3.8 mm height.
Feature Summary
- Provides common mode noise suppression for automotive power lines and multimedia circuits
- Supports high current handling capabilities suitable for power line applications
- Designed for automated surface mount assembly processes
Applications
- Automotive electronic devices
- Power line filtering
- Multimedia circuit protection
Procurement Notes
Verify the specific manufacturer part number against official Pulse Electronics documentation to ensure compatibility with design requirements. Confirm that the surface mount package dimensions and termination style match the target PCB layout. Check for any RoHS compliance details or specific automotive qualification standards required for the intended application environment before finalizing procurement decisions.
Selection Notes
Select this component when designing circuits requiring common mode noise attenuation for automotive power and multimedia signals. Ensure the selected part meets the necessary current carrying capacity and impedance specifications for the specific frequency range of interest. Verify that the operating temperature range aligns with the environmental conditions of the final assembly location.
Part Context
This component belongs to the APPM series of common mode chokes produced by Pulse Electronics. It is categorized under inductors, chokes, and coils, specifically targeting automotive-grade applications. The product is distinct from power inductors like the BPSC or APCI series due to its dual-line configuration and common mode filtering purpose rather than energy storage.
FAQ
What is the test frequency for the impedance specification?
The impedance value of 1.02 kOhms is measured at a test frequency of 100 MHz.
Is this component shielded?
No, the APPM00070638102XY0 is an unshielded common mode choke.
