APT-106

Overview

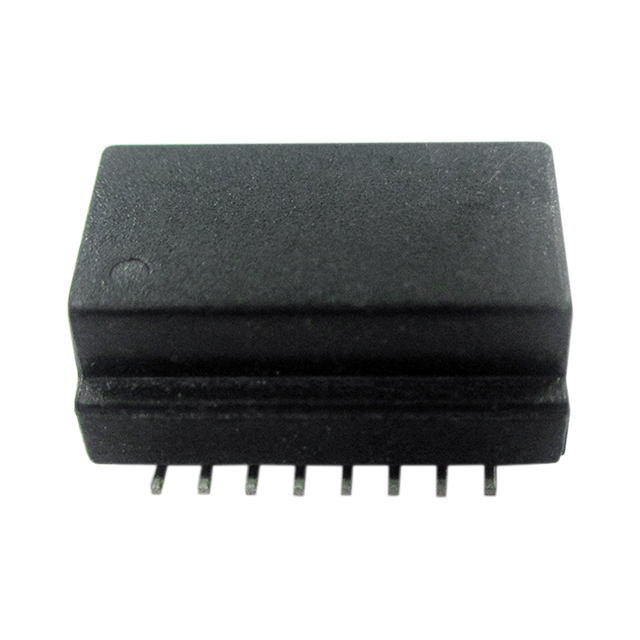

The APT-106 is a single-port LAN transformer designed for 10/100Base-TX applications. It meets IEEE 802.3 specifications and supports extended temperature operation ranging from -40°C to +85°C. The component utilizes a T,C core configuration with a 1500V isolation rating. Physical dimensions are 12.7mm in length, 8.8mm in width, and 5.7mm in height, with a 1.27mm lead pitch.

Feature Summary

• Supports 10/100Base-TX Ethernet transmission standards
• Provides 1500V electrical isolation capability
• Operates reliably within an extended industrial temperature range

Applications

• Industrial Ethernet network interfaces
• Extended temperature embedded systems
• LAN port signal conditioning

Procurement Notes

Verify the specific datasheet version and mechanical drawing against current design requirements. Confirm that the T,C core type and 1500V isolation rating align with system safety and performance needs. Ensure the footprint matches the PCB layout constraints before finalizing procurement.

Selection Notes

Select this component when extended temperature stability is required for 10/100Base-TX networks. The T,C core configuration offers specific magnetic properties suitable for robust signal integrity. Verify compatibility with existing PHY drivers and ensure the physical package dimensions fit the available board space.

Part Context

This part belongs to Abracon's LAN transformer portfolio, specifically engineered for Ethernet connectivity. It serves as a critical interface component between the MAC controller and the physical medium. The design focuses on meeting standard compliance while maintaining performance across varying environmental conditions.

Replacement Considerations

No public confirmed substitute part numbers are available.
