APT3216LSECK/J3-PRV

Overview

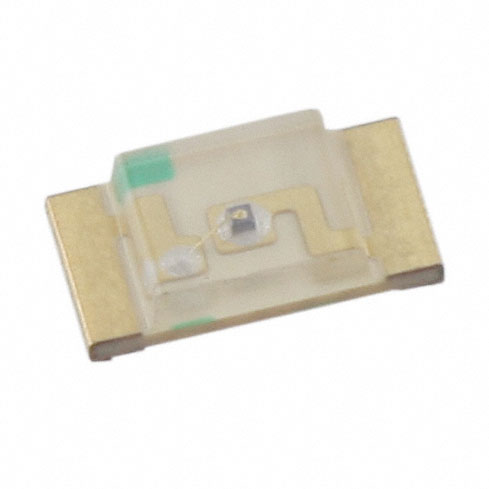

The APT3216LSECK/J3-PRV is a single-color surface-mount LED from Kingbright, designed for low-current applications. It features a rectangular lens with water clear transparency and emits red light at a peak wavelength of 625 nm. The component operates with a forward voltage of 1.8 V at a test current of 2 mA, dissipating up to 84 mW. It has a viewing angle of 120 degrees and an optical intensity of 100 mcd. The package dimensions are 3.2 mm in length, 1.6 mm in width, and 0.75 mm in height.

Feature Summary

• Low power consumption design suitable for battery-operated devices
• High brightness output with 100 mcd intensity at low drive current
• Wide viewing angle of 120 degrees for broad visibility
• Water clear lens provides high light transmission efficiency

Applications

• Status indication in portable electronic devices
• Panel indicators for consumer appliances
• Low-power circuit status monitoring
• Battery level indicators in handheld gadgets

Procurement Notes

Verify the exact suffix J3-PRV against the manufacturer datasheet to confirm lead frame material and plating specifications. Ensure compatibility with standard SMT reflow profiles by checking the moisture sensitivity level (MSL) rating prior to assembly. Confirm RoHS compliance status through official Kingbright documentation rather than distributor summaries.

Selection Notes

Select this component when a compact 1206 footprint is required for red status indication. It is appropriate for designs prioritizing low current draw over maximum luminous intensity. Consider the 1.8 V forward voltage drop for driver circuit calculations. Verify that the 100 mcd intensity meets visibility requirements for the specific enclosure or panel application.

Part Context

This part belongs to Kingbright's APT series of single-color LEDs, which focuses on low-current operation and compact surface-mount packaging. The 3216 metric size corresponds to the industry-standard 1206 package dimension. It serves as a general-purpose indicator within the broader optoelectronics portfolio for visual signaling.

Replacement Considerations

Publicly confirmed substitute part numbers include APT3216LSECK and APT3216LSECK/J3-PRV variants with identical electrical characteristics. Cross-reference mechanical drawings for pin alignment and thermal dissipation requirements before substitution.
