APT3216SURC

Overview

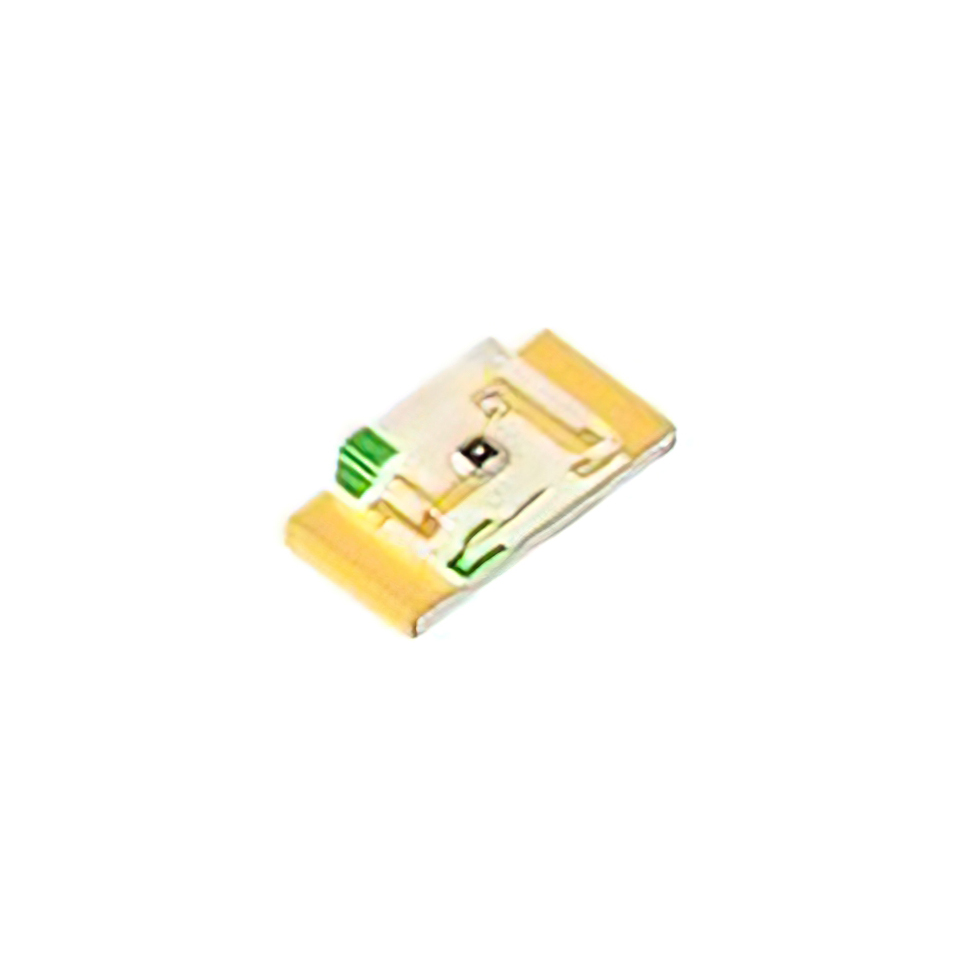

The APT3216SURC is a single-color surface-mount LED from the Kingbright KP-3216 series, designed for high-efficiency red light emission. It features a rectangular water-clear lens with dimensions of 3.2 mm by 1.6 mm and a height of 0.75 mm. The component operates at a forward voltage of 1.9 V with a peak wavelength of 628 nm. It delivers a luminous intensity of 200 mcd and maintains a wide viewing angle of 120 degrees. The device supports a maximum continuous forward current of 30 mA and a peak forward current of 185 mA, with a power dissipation rating of 75 mW.

Feature Summary

• High-efficiency red light emission within a compact 3216 surface-mount package
• Wide 120-degree viewing angle facilitated by a rectangular water-clear lens
• Robust electrical handling with a peak forward current capacity of 185 mA

Applications

• Status indicators in consumer electronics
• Panel illumination for control interfaces
• General-purpose signaling in industrial equipment

Procurement Notes

Verify the specific suffix against the manufacturer's official datasheet to confirm optical parameters such as wavelength and intensity binning. Ensure that the ordering information matches the required lens clarity and packaging format. Cross-reference the RoHS compliance status with the latest regulatory documentation before finalizing procurement orders.

Selection Notes

Select this component when a standard red indicator requires a low-profile 3216 footprint. The 120-degree viewing angle makes it suitable for applications requiring broad visibility. Consider the 1.9 V forward voltage drop for circuit design compatibility. Verify thermal management requirements given the 75 mW power dissipation limit during operation.

Part Context

This part belongs to the KP-3216 series of surface-mount LEDs manufactured by Kingbright. The series utilizes a 3216 metric package size, providing a standardized form factor for automated assembly processes. The APT3216SURC represents a specific variant optimized for red light output with high efficiency characteristics typical of the series.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
