APT3216SURCK

Overview

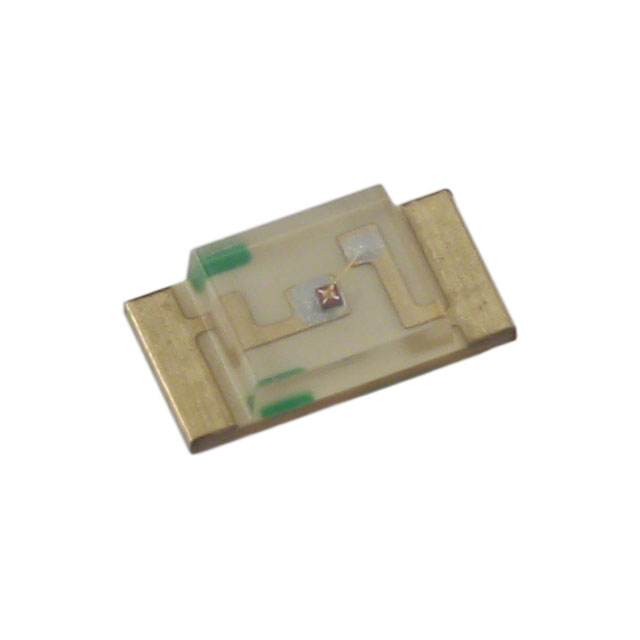

The Kingbright APT3216SURCK is a surface-mount single-color red LED from the KP-3216 series. It features a rectangular, water-clear lens with dimensions of 3.20 mm length and 1.60 mm width. The component emits light at a peak wavelength of 630 nm with a luminous intensity of 230 mcd. Electrical characteristics include a forward voltage of 2.5 V and a maximum continuous forward current of 185 mA. It operates within a temperature range of -40°C to +85°C and complies with RoHS standards.

Feature Summary

• High-efficiency red emission in a compact 3216 metric package
• Water-clear rectangular lens for optimized light transmission
• Wide viewing angle of 120 degrees for broad visibility
• RoHS compliant construction for environmental safety

Applications

• Panel indicators for electronic equipment
• Status signaling in consumer appliances
• General-purpose illumination in control panels

Procurement Notes

Verify the specific suffix against the manufacturer datasheet to confirm electrical parameters such as forward voltage and wavelength. Ensure compatibility with standard SMT reflow profiles and check moisture sensitivity levels for storage requirements before assembly.

Selection Notes

Select this component when a standard red indicator is required in space-constrained designs. The 3216 footprint offers a balance between visibility and board density. Consider the 120-degree viewing angle for applications requiring wide-area visibility without precise alignment.

Part Context

This part belongs to Kingbright's KP-3216 series of surface-mount LEDs. The series provides various color options in a standardized 3216 metric package, facilitating design flexibility across different product lines while maintaining consistent mechanical mounting specifications.

Replacement Considerations

Direct substitutes may include other Kingbright parts in the KP-3216 series with matching electrical ratings. Verify pinout orientation and lens shape compatibility when considering cross-manufacturer alternatives.
