APT3216SYCK

$0.22

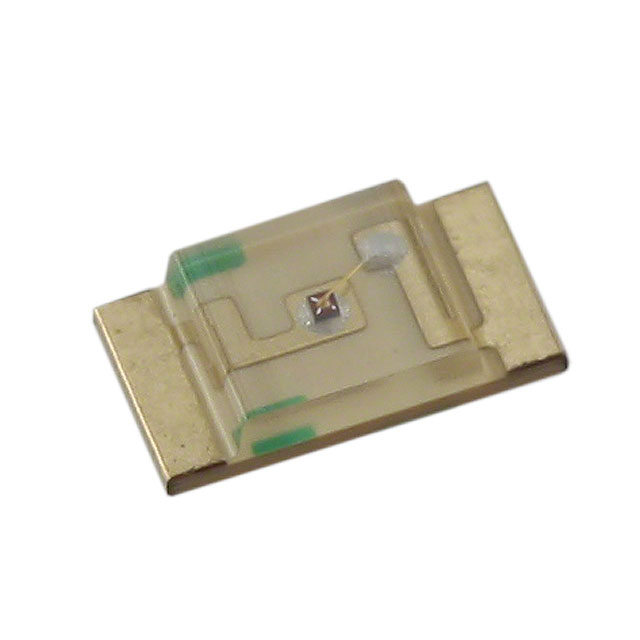

Description：LED YELLOW CLEAR CHIP SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:dc37f367f814 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED YELLOW CLEAR CHIP SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Yellow
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：150mcd
Lens Style：Rectangle with Flat Top
Lens Size：2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ)：2V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：590nm
Wavelength - Peak：590nm
Features：-
Package / Case：1206 (3216 Metric)
Supplier Device Package：Chip LED
Size / Dimension：3.20mm L x 1.60mm W
Height (Max)：0.75mm
Grade：-
Qualification：-

Download product information

APT3216SYCK

Overview

The APT3216SYCK is a single-color yellow surface-mount LED from the Kingbright KP-3216 series. It features a 3216 (1206) metric package with dimensions of 3.2 mm length, 1.6 mm width, and 1.8 mm height. The device emits at a peak wavelength of 590 nm with a water-clear dome lens. Electrical characteristics include a forward voltage of 2 V and a maximum power rating of 75 mW. It operates within a temperature range of -40°C to +85°C and has a viewing angle of 50 degrees.

Feature Summary

Utilizes a water-clear dome lens for optical transmission
Designed for surface-mount technology (SMD/SMT) installation
Complies with RoHS environmental standards

Applications

Indicator lights in electronic devices
General illumination applications
Backlighting systems

Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number APTD3216SYCK or KPTD-3216SYCK against official Kingbright documentation. Confirm that the received units match the specified 3216 package dimensions and yellow color characteristics. Ensure handling procedures account for moisture sensitivity levels as indicated in the datasheet to maintain component integrity during storage and assembly.

Selection Notes

Select this component when a compact 3216 form factor is required for yellow indication. Consider the 50-degree viewing angle and 900 mcd intensity for visibility requirements. Evaluate the 2 V forward voltage drop for circuit design compatibility. Verify that the operating temperature range meets the specific environmental conditions of the target application before finalizing the selection.

Part Context

This component belongs to the Kingbright KP-3216 series of single-color LEDs. It shares the standard 3216 metric footprint with other variants in the family, such as red or green options. The series is characterized by its small size and suitability for automated surface-mount assembly processes, providing a standardized solution for space-constrained lighting designs.
