Product Detailed Parameters
- Description：DIODE STD 400V 60A TO247 [B]
- Series：-
- Mfr：Microchip Technology
- Package：Tube
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：400 V
- Current - Average Rectified (Io)：60A
- Voltage - Forward (Vf) (Max) @ If：1.5 V @ 60 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：37 ns
- Current - Reverse Leakage @ Vr：250 µA @ 400 V
- Capacitance @ Vr, F：-
- Mounting Type：Through Hole

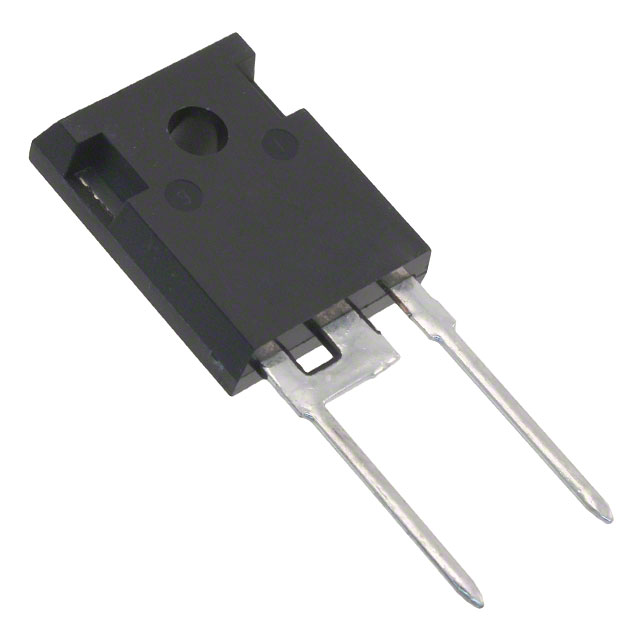

- Package / Case：TO-247-2
- Supplier Device Package：TO-247 [B]
- Operating Temperature - Junction：-55°C ~ 175°C
- Grade：-
- Qualification：-
Download product information
Overview
The APT60D40BG is a single ultra-fast soft recovery diode manufactured by Microchip Technology. It utilizes silicon technology and is housed in a TO-247 through-hole package. The device features a maximum repetitive reverse voltage of 400 V and a continuous forward current rating of 60 A at 25°C. Key electrical parameters include a forward voltage of 2.5 V, a maximum surge current of 320 A, and a reverse leakage current of 25 µA. The component operates within a temperature range of -55°C to +175°C.
Feature Summary
- Ultra-fast soft recovery characteristics for reduced switching losses
- High thermal stability with a maximum junction temperature of 175°C
- Robust surge current handling capability
Applications
- High-frequency power supply circuits
- Motor drive freewheeling applications
- DC-DC converter output rectification
Procurement Notes
Verify the specific suffix 'BG' against the official Microchip datasheet to confirm pinout and packaging details. Ensure the procurement channel provides valid RoHS compliance documentation. Confirm that the TO-247 package type matches the target PCB footprint requirements before finalizing orders.
Selection Notes
Select this component when high-speed switching performance is required alongside moderate current handling. The 400V rating suits lower voltage DC bus applications compared to higher voltage counterparts. Consider the TO-247 package for efficient heat dissipation in through-hole designs without requiring complex module integration.
Part Context
This part belongs to Microchip's Fast Recovery Epitaxial Diode (FRED) portfolio. It serves as a discrete alternative to integrated modules for medium-power applications. The device complements other APT series components designed for efficient energy conversion in industrial and consumer electronics.
Replacement Considerations
Consult official substitution guides for equivalent FRED diodes with matching voltage and current ratings. Verify thermal resistance and package compatibility before replacing existing designs.
