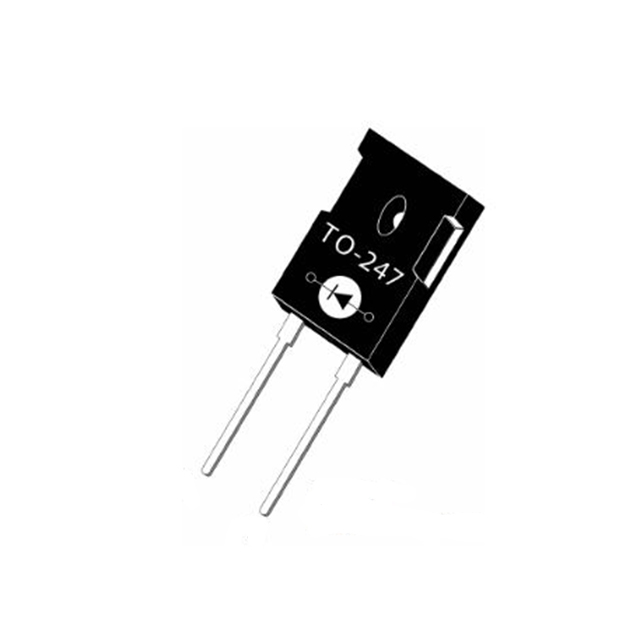

APT75DQ120BG

$2.65

Description：DIODE STD 1200V 75A TO247 [B]
Series：-
Mfr：Microchip Technology
Package：Tube

SKU:b957a63a3263 Category: Single Diodes Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE STD 1200V 75A TO247 [B]
Series：-
Mfr：Microchip Technology
Package：Tube
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：1200 V
Current - Average Rectified (Io)：75A
Voltage - Forward (Vf) (Max) @ If：3.1 V @ 75 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：325 ns
Current - Reverse Leakage @ Vr：100 µA @ 1200 V
Capacitance @ Vr, F：-
Mounting Type：Through Hole
Package / Case：TO-247-2
Supplier Device Package：TO-247 [B]
Operating Temperature - Junction：-55°C ~ 175°C
Grade：-
Qualification：-

Download product information

APT75DQ120BG

Overview

The APT75DQ120BG is a single ultrafast recovery rectifier diode manufactured by Microchip Technology. It features a maximum repetitive peak reverse voltage of 1200 V and a continuous forward current rating of 75 A. The device utilizes a TO-247 package with screw mount installation. Key electrical parameters include a forward voltage of 3.3 V at 75 A, a reverse leakage current of 100 µA at 1200 V, and a reverse recovery time of 325 ns. It operates within a junction temperature range of -55°C to +175°C.

Feature Summary

Ultrafast recovery characteristics for high-speed switching applications
Soft recovery behavior to minimize electromagnetic interference
Low forward voltage drop for improved efficiency

Applications

High-frequency power supply circuits
Induction heating systems
Uninterruptible power supplies (UPS)
Motor drive inverters

Procurement Notes

Verify the specific ordering suffix against the official Microchip datasheet to ensure correct pinout and thermal specifications. Confirm RoHS compliance status through the manufacturer's documentation before integration. Check for any recent product change notices that may affect mechanical dimensions or material composition.

Selection Notes

Select this component when high-voltage blocking capability and fast switching speeds are required in a standard TO-247 form factor. Ensure the thermal management design supports the specified junction temperature limits. Compare reverse recovery time requirements against circuit switching frequencies to validate performance suitability.

Part Context

This part belongs to Microchip's discrete diode portfolio, specifically designed for power conversion applications. It serves as a replacement for legacy ultrafast diodes in industrial and consumer electronics. The TO-247 package provides robust mechanical stability and efficient heat dissipation for medium-power designs.
