APTB1612LQBDCGKC
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED BLUE/GREEN CLEAR 4SMD
- Series：HELI Colour
- Mfr：Kingbright
- Package：Tape & Reel (TR)
- Color：Blue, Green
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：12mcd Blue, 3mcd Green
- Lens Style：Rectangle with Flat Top
- Lens Size：1.20mm x 1.25mm
- Voltage - Forward (Vf) (Typ)：2.7V Blue, 1.9V Green
- Current - Test：2mA Blue, 2mA Green
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：465nm Blue, 570nm Green
- Wavelength - Peak：460nm Blue, 574nm Green
- Features：-
- Package / Case：4-SMD, No Lead
- Supplier Device Package：4-SMD
- Size / Dimension：1.60mm L x 1.25mm W
- Height (Max)：0.85mm
- Grade：-
- Qualification：-
Download product information
Overview

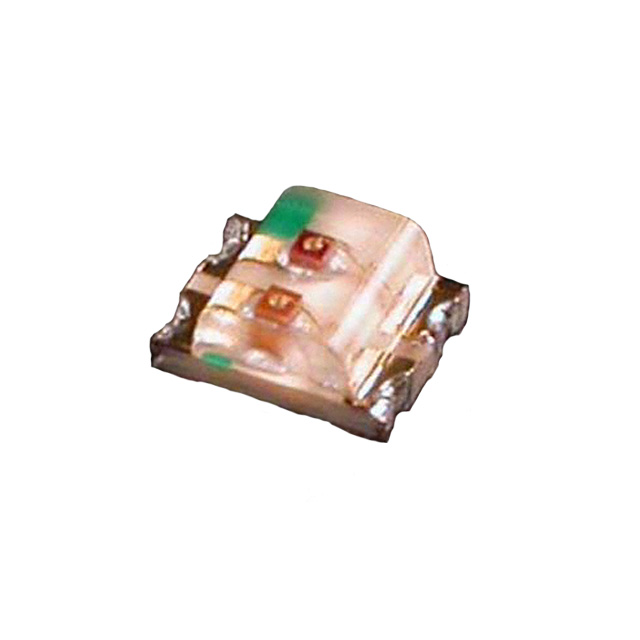

The APTB1612LQBDCGKC is a bi-color surface-mount LED from Kingbright's HeliColour series, featuring a compact 1.6 x 1.2 mm package. It integrates blue and green light sources within a single colorless lens assembly. The component supports independent operation of both colors, enabling mixed-light output capabilities for status indication.
Feature Summary
- Dual-chip architecture combining blue and green emitters in one package
- Colorless lens design for accurate spectral transmission
- Surface-mount technology optimized for automated assembly
Applications
- Multi-state electronic status indicators
- Bi-color signal lamps for control panels
- Compact device front-panel illumination
Procurement Notes
Verify the specific suffix LQBDCGKC against the manufacturer datasheet to confirm the exact wavelength and binning specifications. Ensure compatibility with standard reflow soldering profiles for SMD components. Confirm moisture sensitivity handling requirements prior to assembly.
Selection Notes
Select this component when space-constrained designs require two distinct indicator colors in a single footprint. Evaluate thermal management needs as forward current ratings dictate heat dissipation. Compare viewing angles against system optical requirements to ensure adequate visibility.
Part Context
This part belongs to Kingbright's HeliColour family, designed for high-density PCB layouts. It replaces discrete dual-LED arrangements, reducing board space and simplifying routing. The 1.6x1.2mm form factor aligns with industry-standard small-signal LED footprints.
Replacement Considerations
APTB1612CGKQWDF serves as a related bi-color variant within the same package series. Verify pinout compatibility and luminous intensity differences before substitution.
