APTB1612SEKCGKC

Overview

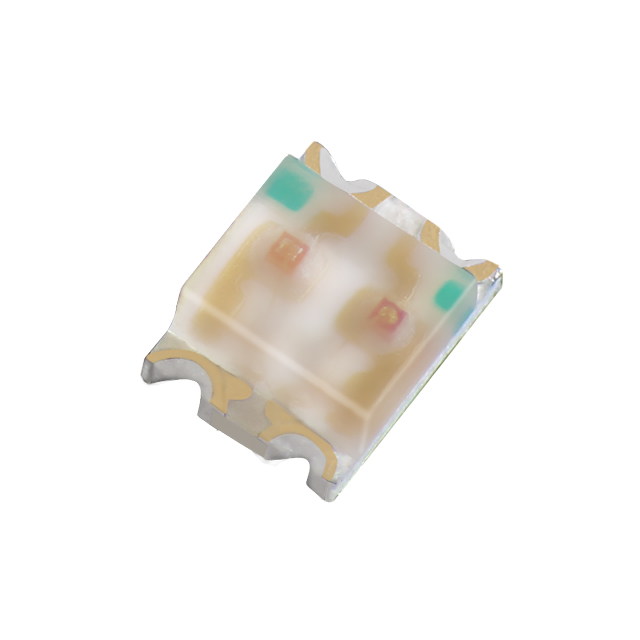

The APTB1612SEKCGKC is a dual-chip bi-color surface-mount LED from Kingbright, housed in a 0605 (1613 metric) package. It integrates green and orange emitters within a single transparent lens assembly. The device features a rectangular lens shape with dimensions of 1.60 mm length by 1.25 mm width and a maximum height of 0.85 mm. Electrical characteristics include a forward voltage of 2.1 V for both colors and a power dissipation rating of 75 mW. The optical performance specifies a viewing angle of 120 degrees, with peak wavelengths at 574 nm for green and 610 nm for orange.

Feature Summary

• Dual-chip configuration enabling independent control of green and orange light sources within a compact footprint
• Water-clear colorless lens design providing high transparency and consistent light transmission
• Wide 120-degree viewing angle optimized for broad visibility in indicator applications

Applications

• Status indication on electronic circuit boards
• Multi-state signaling in consumer electronics devices
• Visual feedback components in industrial control panels

Procurement Notes

Verify the specific suffix code to confirm the exact color combination and luminous intensity ranking prior to ordering. Ensure that the selected variant matches the required forward voltage and current specifications for the target application circuit. Confirm RoHS compliance status and moisture sensitivity level requirements for the manufacturing process.

Selection Notes

Select this component when space constraints require a bi-color indicator in an 0605 package size. Consider the 120-degree viewing angle for applications requiring wide visibility. Evaluate the thermal management needs relative to the 75 mW power dissipation limit during continuous operation.

Part Context

This part belongs to Kingbright's APTB1612 series of bi-color SMD LEDs. The series offers various color combinations and lens styles within the same mechanical envelope. It serves as a standard solution for manufacturers needing compact, multi-color visual indicators without increasing board space.

Replacement Considerations

APTB1612SYKCGKC-F01

FAQ

What is the peak wavelength for the orange emitter?

The peak wavelength for the orange emitter is 610 nm.

Does this component support common cathode or common anode configurations?

The datasheet describes it as a dual-chip LED; specific internal wiring (common cathode/anode) should be verified against the detailed electrical diagram in the official specification sheet.
