APTDF400KK120G

$121.99

Description：DIODE MODULE GP 1200V 470A SP6
Series：-

SKU:ee69f8b9e0c2 Category: Diode Arrays Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE MODULE GP 1200V 470A SP6
Series：-
Mfr：Microchip Technology
Package：Bulk
Diode Configuration：1 Pair Common Cathode
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：1200 V
Current - Average Rectified (Io) (per Diode)：470A
Voltage - Forward (Vf) (Max) @ If：3 V @ 400 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：385 ns
Current - Reverse Leakage @ Vr：250 µA @ 1200 V
Operating Temperature - Junction：-
Mounting Type：Chassis Mount
Package / Case：LP4
Supplier Device Package：SP6
Grade：-
Qualification：-

Download product information

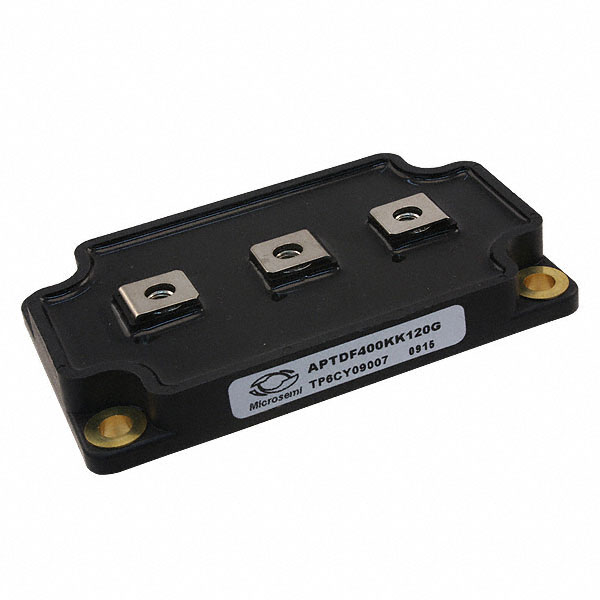

APTDF400KK120G

Overview

The APTDF400KK120G is a silicon diode module manufactured by Microchip Technology, housed in the D1 package with screw mount installation. It features a common cathode configuration and a maximum reverse voltage of 1.2 kV. The forward voltage is specified at 3.8 V. The component operates within a temperature range from -40 C to +125 C.

Feature Summary

Common cathode diode configuration for power applications
Screw mount installation style in D1 package
Silicon technology construction

Applications

High voltage power discrete circuits
Industrial power conversion systems

Procurement Notes

Verify the exact part number against official Microchip Technology documentation to ensure accuracy. Confirm that the D1 package and screw mount specifications match your design requirements. Check for any specific RoHS compliance details or manufacturing change notifications relevant to this component before procurement.

Selection Notes

Select this module when a common cathode arrangement is required for high voltage applications up to 1.2 kV. Ensure the thermal management system supports the operating temperature range of -40 C to +125 C. Verify that the screw mount interface is compatible with your heatsink or chassis design constraints.

Part Context

This component belongs to the Microchip Technology diode module product line. It utilizes silicon technology and is designed for robust performance in demanding electrical environments. The D1 package provides a standardized form factor for integration into various power electronic assemblies requiring reliable rectification capabilities.
