Product Detailed Parameters
- Description：WINDOW KIT 19.88X15.88
- Series：*
- Mfr：Hoffman Enclosures, Inc.
- Package：Bulk
Download product information
Overview

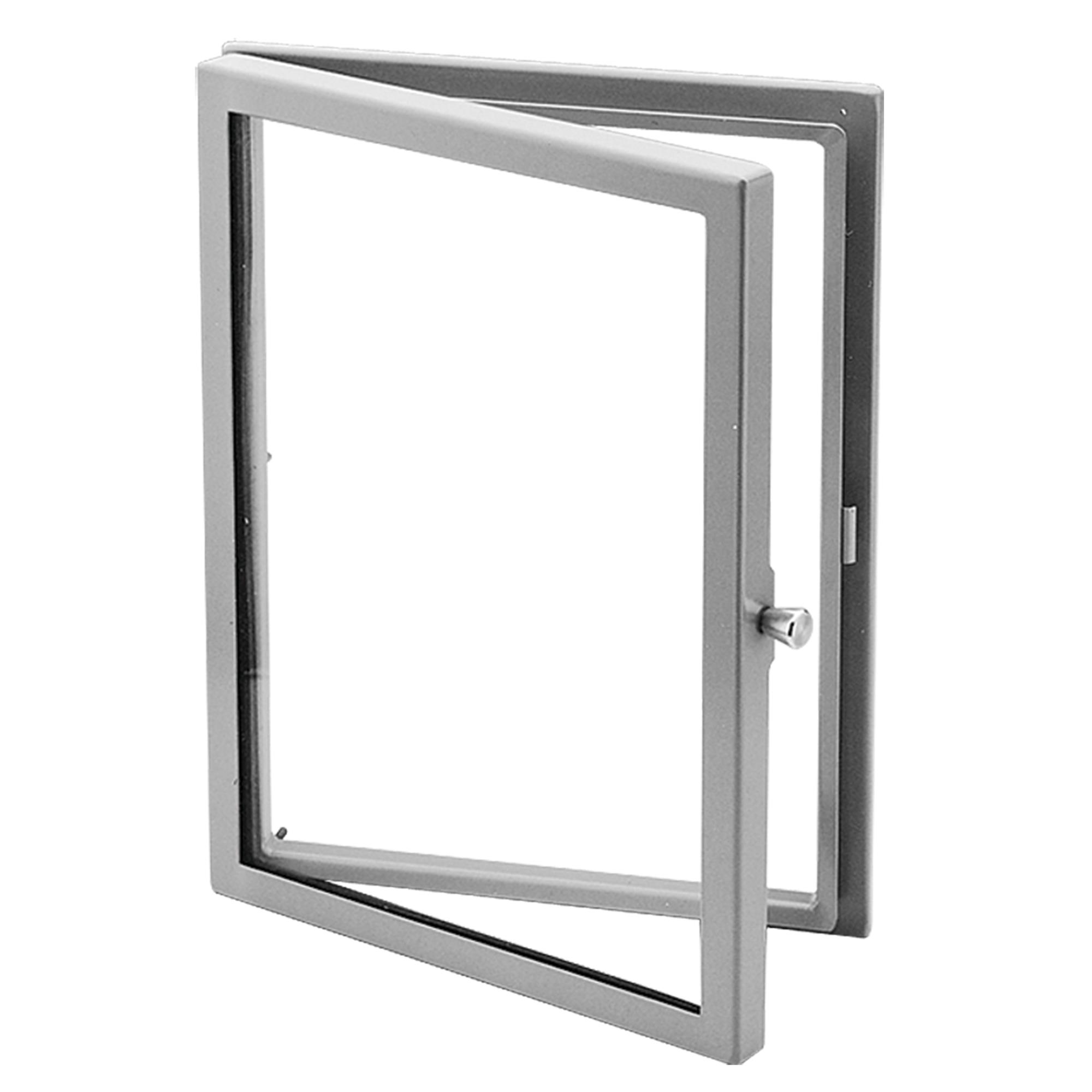

The APWK2016H is a hinged window kit manufactured by Hoffman Enclosures, Inc. It features a steel frame and is designed for NEMA 12 enclosures. The unit includes a UL 508A and CSA approved window assembly. Overall dimensions are 20 inches in height, 16 inches in width, and 1.49 inches in depth. The required cutout size is 18.44 inches in height by 14.44 inches in width. The window itself measures 18.28 inches in height and 14.28 inches in width.
Feature Summary
- Provides visual access to internal components via a hinged design
- Constructed with a durable steel frame for structural integrity
- Meets UL 508A and CSA safety approval standards
Applications
- NEMA 12 industrial control enclosures
- Electrical equipment requiring operator visibility
- Industrial automation panels
Procurement Notes
Verify that the target enclosure model is compatible with the A80W series window kits. Confirm that the physical cutout dimensions of the enclosure match the required 18.44-inch by 14.44-inch specification. Ensure the enclosure rating aligns with the NEMA 12 designation associated with this specific accessory part number.
Selection Notes
Select this component when visual monitoring of internal switches or indicators is required without compromising the NEMA 12 environmental protection rating. The hinged mechanism allows for secure closure while enabling easy access. Verify compatibility with existing enclosure frames before procurement.
Part Context
This accessory belongs to the Hoffman A80W series of window kits. These accessories are designed to retrofit standard steel enclosures, enhancing functionality by adding observation capabilities. The product line supports various industry standards for electrical safety and environmental sealing.
Replacement Considerations
Compatible replacement parts include other A80W series window kits from Hoffman Enclosures, Inc., provided they match the specific dimensional requirements and mounting configurations of the target enclosure.
FAQ
What is the required cutout size for installing the APWK2016H?
The required cutout size is 18.44 inches in height by 14.44 inches in width.
Is this window kit suitable for outdoor use?
No, this kit is specified for NEMA 12 enclosures, which are intended for indoor use to protect against dust and dripping non-corrosive liquids.
