ASB124R

Overview

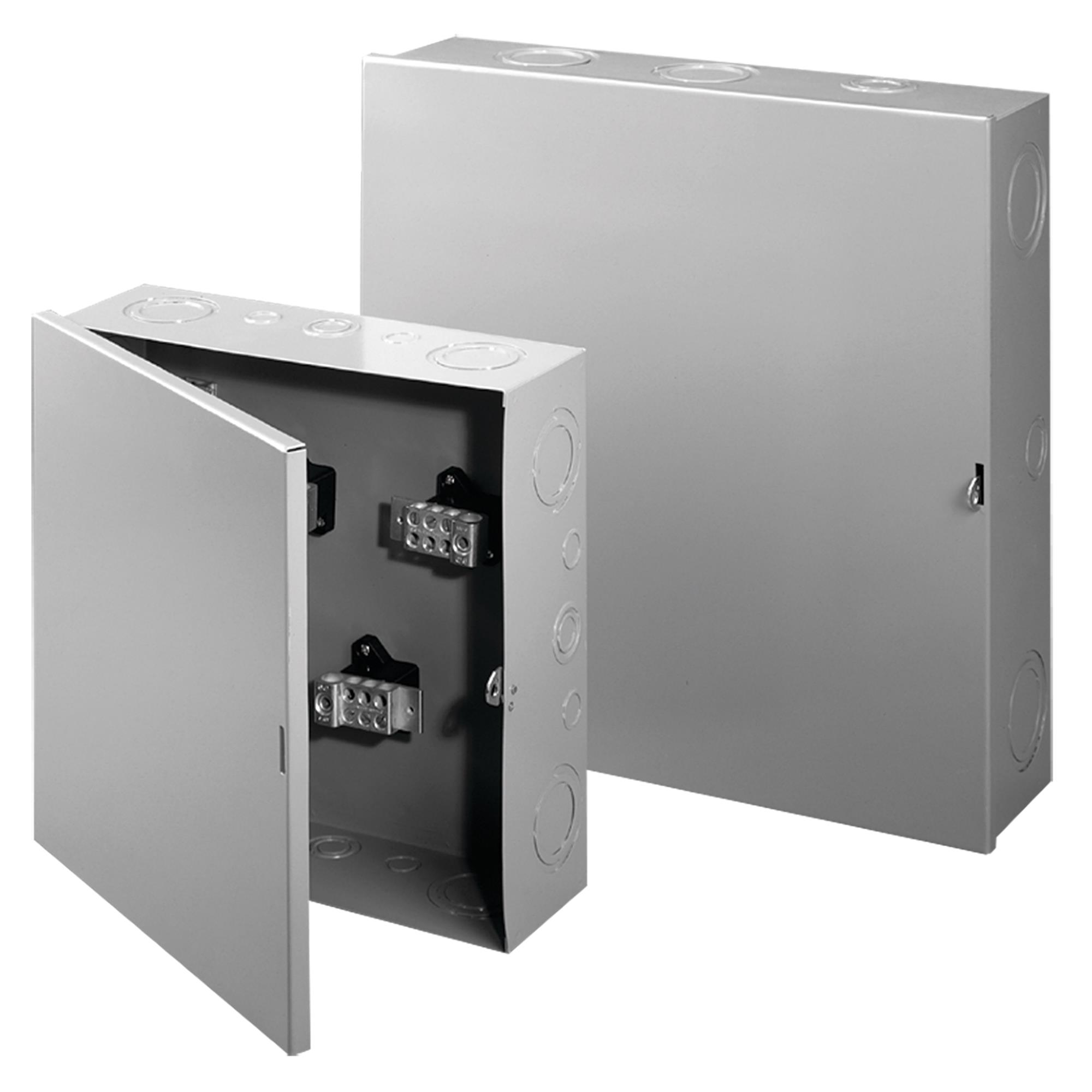

The ASB124R is a surface-mount steel splitter box manufactured by Hoffman Enclosures, Inc. It measures 12 inches in height, 12 inches in width, and 4 inches in depth. The enclosure features a gray ANSI 61 polyester powder paint finish on both interior and exterior surfaces. It is rated for NEMA Type 1 applications and supports a maximum voltage of 600VAC with a 125A main lug rating.

Feature Summary

• Provides pre-installed terminal blocks to split feeder circuit conductors into multiple branch circuits
• Constructed from painted steel with a durable gray powder coat finish
• Designed for indoor surface mounting with standard hinge and pull latch hardware

Applications

• Splitting feeder circuit conductors into branch circuits
• Indoor electrical distribution systems requiring NEMA Type 1 protection
• Surface mount installations for power distribution panels

Procurement Notes

Verify that the specific application requires a 125A rated main lug and 110A rated branch lugs as documented. Confirm the necessity of the 12x12x4 inch dimensions for the intended installation space. Ensure the environment meets NEMA Type 1 requirements, as this unit is not suitable for outdoor or wet locations. Check for compatibility with existing conduit entries and mounting hardware.

Selection Notes

Select this model when a compact, indoor splitter box is needed for low-voltage or medium-voltage distribution up to 600VAC. The 125A capacity suits smaller commercial or industrial feeders. Consider the 4-inch depth for wire bending space and terminal block clearance. This unit is distinct from larger chassis enclosures like the MAS series or modular racks.

Part Context

This component belongs to the Hoffman Splitter Box line, designed specifically for dividing power feeds rather than general equipment housing. Unlike the MAS or MCD series which are large wall-mount enclosures, the ASB124R focuses on electrical connectivity within a small footprint. It complements other Hoffman accessories but serves a unique distribution function.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact dimensional and electrical rating matches if sourcing alternatives.
