Fixed Inductors Overview

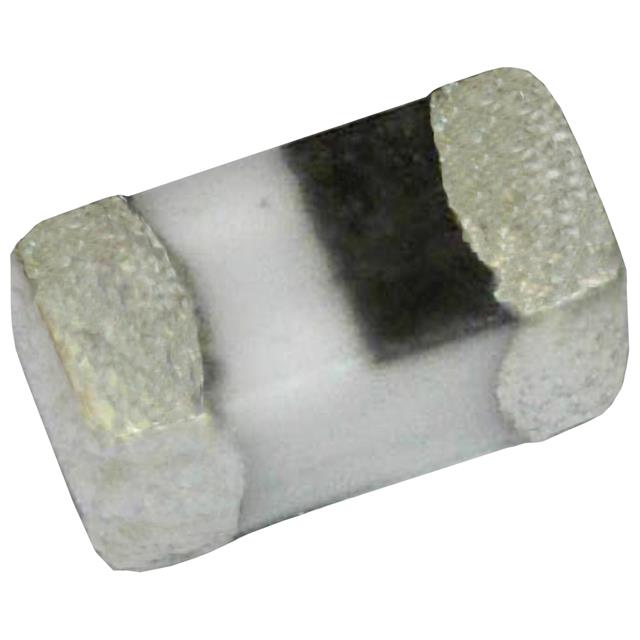

The ASCQ0006030322NH00 is a shielded multilayer RF inductor manufactured by Pulse Electronics. It features an inductance of 22 nH with a tolerance of 3%. The component has a maximum DC resistance of 1.29 Ohms and a saturation current of 190 mA. It operates within a temperature range of -55°C to +125°C and achieves a minimum Q factor of 14 at a test frequency of 500 MHz. The self-resonant frequency is specified at 4 GHz. The physical dimensions are 0.6 mm x 0.3 mm x 0.3 mm, utilizing a ceramic core.

Fixed Inductors Feature Summary

• Shielded multilayer construction for reduced electromagnetic interference
• AEC-Q200 qualified for automotive reliability standards
• Ceramic core material supporting high-temperature operation

Fixed Inductors Applications

• RF circuit design
• Automotive electronics systems
• PCB mount applications

Fixed Inductors Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Pulse Electronics or authorized distributors before procurement. Confirm that the AEC-Q200 qualification aligns with your project's automotive requirements. Ensure the 190 mA saturation current meets the peak load demands of your target application to prevent performance degradation under operating conditions.

Fixed Inductors Selection Notes

Select this component when a compact 0201 footprint is required for RF filtering or impedance matching. The 22 nH value suits high-frequency applications up to several gigahertz. Consider the 1.29 Ohm DC resistance for power loss calculations. The AEC-Q200 certification makes it suitable for automotive environments where thermal stability and reliability are critical constraints.

Fixed Inductors Part Context

This part belongs to the ASCQ series of shielded RF inductors from Pulse Electronics. It shares the same 0603 metric footprint as other variants but differs in inductance and current ratings. The series utilizes multilayer ceramic technology to provide consistent performance across wide temperature ranges while maintaining a low profile for dense PCB layouts.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
