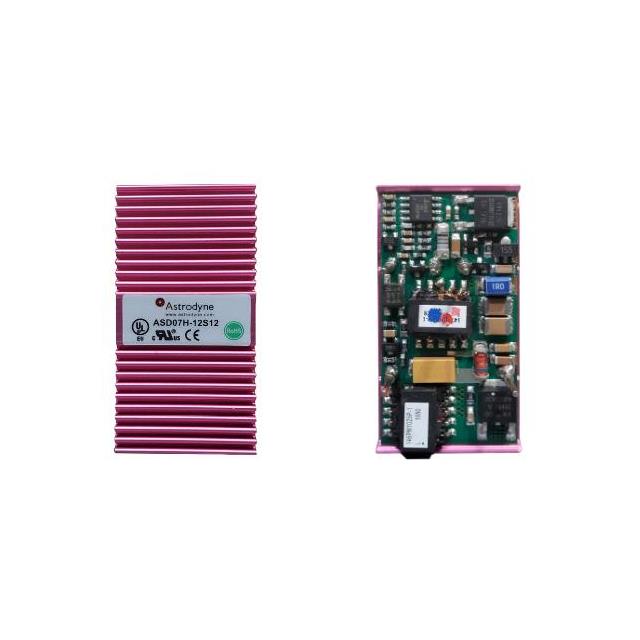

ASD07H-12S12

ASD07H-12S12 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Astrodyne TDI. Its product description is Isolated and Regulated 7.5 WATT. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for ASD07H-12S12

• Description：Isolated and Regulated 7.5 WATT
• Series：ASD07H (7W)
• Mfr：Astrodyne TDI
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：620mA
• Power (Watts)：7.44 W
• Voltage - Isolation：500 V
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-25°C ~ 71°C (With Derating)
• Efficiency：84%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：cURus
• Standard Number：60950-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for ASD07H-12S12
