ASEDV-50.000MHZ-LR-T

Oscillators Overview

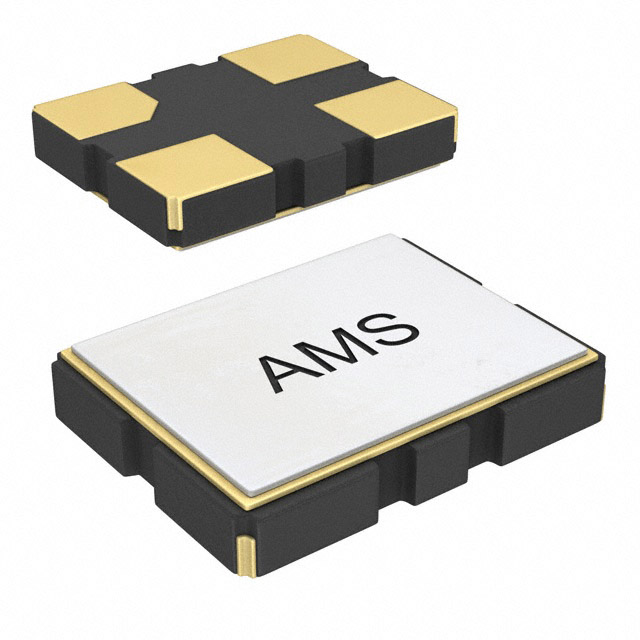

The ASEDV-50.000MHZ-LR-T is a standard crystal oscillator manufactured by Abracon LLC, designed for surface-mount applications in the ASE series. It operates at a nominal frequency of 50 MHz with a frequency stability of ±50 ppm. The device utilizes CMOS output format and supports a supply voltage range from 1.6 V to 3.63 V. It functions within an industrial temperature range of -40°C to +85°C. The component is housed in a compact 1201 package, measuring 3.2 mm x 2.5 mm x 1.2 mm, suitable for space-constrained designs.

Oscillators Feature Summary

• CMOS output clock signal generation
• Industrial temperature operation capability
• Compact surface-mount packaging

Oscillators Applications

• Standard clock timing circuits
• Embedded system microcontrollers
• Consumer electronic devices

Oscillators Procurement Notes

Verify the specific ordering suffix against official Abracon documentation to confirm pinout configuration and electrical characteristics. Ensure the selected variant matches the required supply voltage and load capacitance specifications for the target application circuit design.

Oscillators Selection Notes

Select this component when a 50 MHz CMOS clock source is required with ±50 ppm stability. Consider the 1.6 V to 3.63 V operating range and -40°C to +85°C temperature limits. Verify compatibility with the PCB footprint dimensions of the 1201 package.

Oscillators Part Context

This part belongs to the Abracon ASE series of standard crystal oscillators. These components are engineered for general-purpose timing applications requiring reliable frequency generation. The series offers various frequency options and package sizes to accommodate different design constraints.

Oscillators Replacement Considerations

Consult official manufacturer substitution lists for verified alternatives. Cross-reference parameters such as frequency, stability, package size, and output logic before replacing.
