ASEMB-44.000MHZ-XY-T

Oscillators Overview

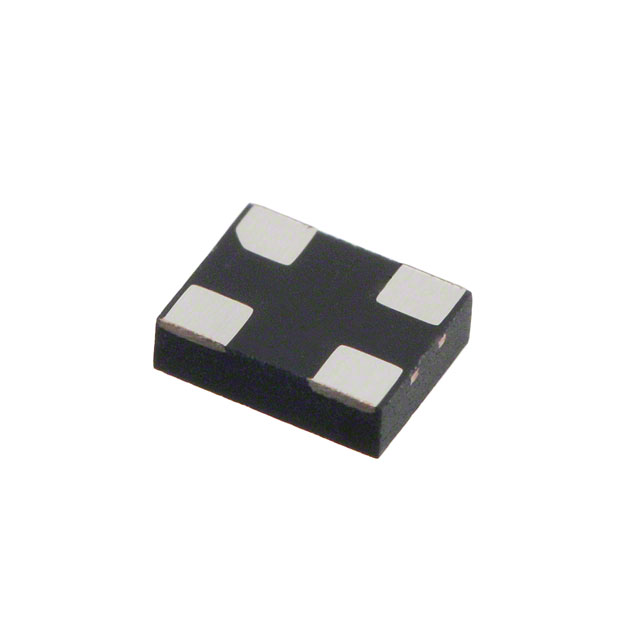

The ASEMB-44.000MHZ-XY-T is a MEMS oscillator operating at a standard frequency of 44 MHz with a frequency stability of ±10 ppm. It utilizes CMOS output format and functions within a supply voltage range of 1.8 V to 3.3 V. The component features a 4-SMD, No Lead package with dimensions of 3.5 mm in length, 2.5 mm in width, and 0.85 mm in height. It supports a load capacitance of 15 pF and includes standby power-down functionality. The operational temperature range spans from -40°C to +105°C.

Oscillators Feature Summary

• MEMS technology for enhanced reliability
• CMOS output signal format
• Low profile surface mount design

Oscillators Applications

• General purpose clock generation
• Digital signal processing systems
• Communication equipment timing

Oscillators Procurement Notes

Verify the specific suffix codes against official Abracon documentation to confirm exact electrical characteristics and packaging details. Ensure that the selected variant matches the required voltage levels and output drive strength for the target circuit design. Cross-reference the part number with current manufacturer datasheets to validate availability and compliance status prior to procurement.

Oscillators Selection Notes

Select this component when a compact, low-power MEMS oscillator is required for 44 MHz applications. Consider the 1.8V to 3.3V operating range and CMOS output compatibility with downstream logic. Evaluate the ±10 ppm stability requirement against system timing constraints. Verify that the 4-SMD package fits within the available PCB real estate and thermal management requirements.

Oscillators Part Context

This part belongs to the ASEMB series of MEMS oscillators from Abracon LLC. These devices are designed as direct replacements for traditional quartz crystals in space-constrained applications. The series offers improved shock resistance and lower power consumption compared to conventional crystal solutions while maintaining precise frequency accuracy.

Oscillators Replacement Considerations

Direct replacement requires matching the 44 MHz frequency, CMOS output type, and 4-SMD package footprint. Verify voltage compatibility and pin configuration differences between legacy quartz components and this MEMS oscillator to ensure seamless integration without circuit modification.
