ASFLMB-66.000MHZ-LY-T

Oscillators Overview

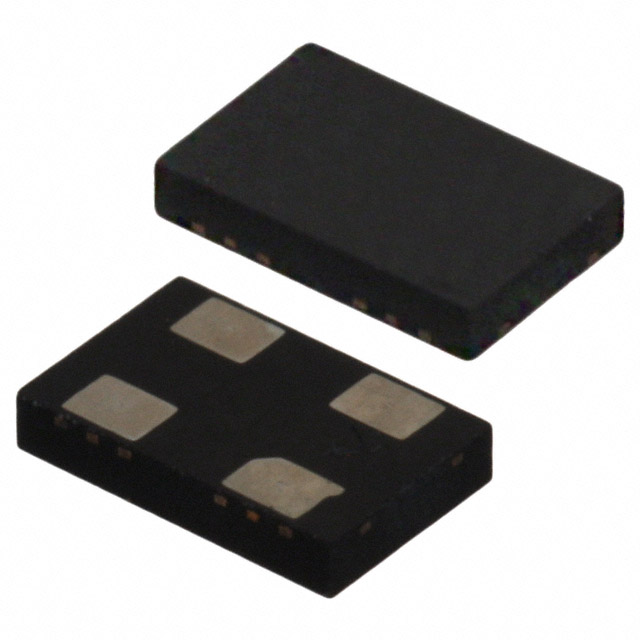

The ASFLMB-66.000MHZ-LY-T is a MEMS XO oscillator by Abracon LLC, operating at 66 MHz with LVCMOS output. It supports 1.8V to 3.3V supply and features ±10 ppm stability across -40°C to 85°C. The device is housed in a 4-SMD, No Lead package (4-QFN 5032) measuring 5.0mm x 3.2mm x 1.2mm. It includes standby functionality with low power consumption.

Oscillators Feature Summary

• MEMS technology for enhanced reliability
• Low power standby mode
• Wide voltage supply range

Oscillators Applications

• General clocking
• Data communication
• Consumer electronics

Oscillators Procurement Notes

Verify the specific suffix LY against the official datasheet to confirm pinout and electrical characteristics match your design requirements. Ensure the 4-SMD No Lead footprint aligns with your PCB layout guidelines. Cross-reference the RoHS compliance status if environmental regulations are critical for your final product assembly.

Oscillators Selection Notes

Select this component when a 66 MHz frequency is required with high stability. Consider the 4-pin QFN package for space-constrained designs. Verify that the LVCMOS output level matches the input requirements of the downstream logic or microcontroller interface in your system architecture.

Oscillators Part Context

This part belongs to the ASFLMB series of MEMS oscillators. It offers a compact form factor suitable for modern portable devices. The series provides various frequencies and packages to support diverse application needs while maintaining consistent performance standards.

Oscillators Replacement Considerations

Check for direct substitutes within the same series or family. Ensure any replacement maintains the 66 MHz frequency, LVCMOS output, and compatible package dimensions.
