ASGTX-C-10.000MHZ-2-T

Oscillators Overview

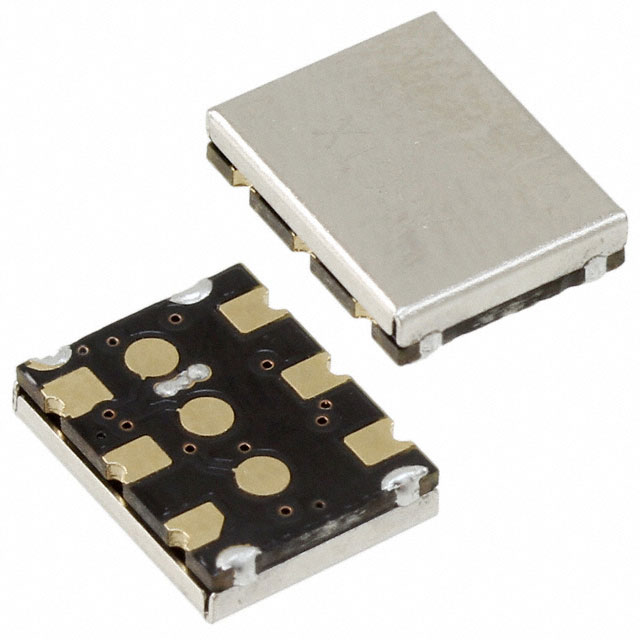

The ASGTX-C-10.000MHZ-2-T is a Voltage Controlled Temperature Compensated Crystal Oscillator (VCTCXO) manufactured by Abracon LLC. It operates at a nominal frequency of 10 MHz with an LVCMOS output format. The device supports a supply voltage range of 3.135 V to 3.465 V and features a frequency stability of ±2 ppm. It is housed in a compact 6-SMD, No Lead package with dimensions of 9.00 mm x 7.00 mm.

Oscillators Feature Summary

• Integrated temperature compensation for enhanced frequency stability
• Voltage control capability for precise frequency tuning
• LVCMOS output interface compatible with standard logic levels

Oscillators Applications

• Precision timing systems requiring stable clock references
• Communication equipment needing low phase noise sources
• Test and measurement instruments demanding high accuracy

Oscillators Procurement Notes

Verify the specific pinout configuration against the official Abracon datasheet before PCB layout finalization. Confirm that the required frequency deviation range aligns with the oscillator's pullability specifications. Ensure the design accommodates the 6-SMD package footprint and thermal requirements for reliable surface mount assembly.

Oscillators Selection Notes

Select this component when both temperature compensation and voltage-controlled tuning are necessary within a single package. Compare performance metrics such as phase noise and current consumption against alternative models if power efficiency is critical. Validate that the operating temperature range meets the environmental conditions of the target application.

Oscillators Part Context

This part belongs to Abracon's ASGTX series of VCTCXOs, designed for applications requiring superior frequency stability over varying temperatures. The series offers various form factors and output types to suit different system integration needs while maintaining high reliability standards.

Oscillators Replacement Considerations

Direct substitutes include other Abracon VCTCXOs with matching 10 MHz frequency and LVCMOS outputs, such as the ASGTX-C-13.000MHZ-2-T for different frequencies. Verify pin compatibility and electrical parameters before swapping.
