ASGTX5DBF1-250.0000T2

Oscillators Overview

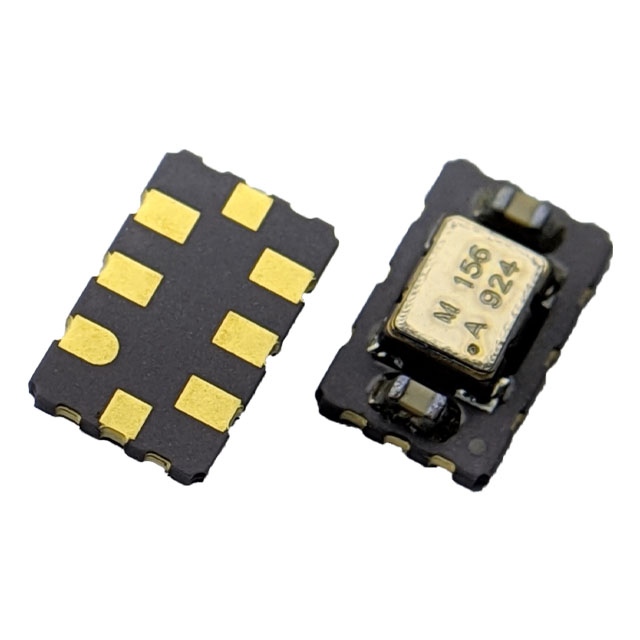

The Abracon ASGTX5DBF1-250.0000T2 is a standard clock oscillator from the ASGTX5 series, operating at a frequency of 250 MHz. It features LVDS output format and operates within a supply voltage range of 2.25 V to 2.75 V. The device exhibits a frequency stability of ±25 ppm and functions across a temperature range of -40°C to +85°C. It is housed in a 5 mm x 3.2 mm surface-mount package with an 8-SMD configuration.

Oscillators Feature Summary

• Provides precise 250 MHz clock signals using LVDS output interface for high-speed data transmission.
• Operates reliably within industrial temperature ranges and standard voltage supplies.
• Designed for compact surface-mount integration in space-constrained electronic assemblies.

Oscillators Applications

• High-speed serial communication interfaces requiring stable clock sources
• Data acquisition systems needing precise timing synchronization
• Industrial control equipment operating in variable thermal environments

Oscillators Procurement Notes

Verify the specific ordering suffix T2 against official Abracon documentation to confirm packaging details and availability status. Ensure compatibility with existing board layouts regarding the 8-SMD footprint and LVDS signal requirements before finalizing procurement decisions.

Oscillators Selection Notes

Select this component when a 250 MHz LVDS clock source is required within a 5x3.2 mm footprint. Confirm that the ±25 ppm stability meets system jitter specifications and that the 2.25V-2.75V supply range aligns with the target power rail infrastructure.

Oscillators Part Context

This part belongs to the ASGTX5 series of standard oscillators by Abracon LLC. The series offers various frequencies and output formats tailored for digital circuit timing applications. The ASGTX5DBF1 variant specifically utilizes LVDS outputs for noise immunity in high-frequency designs.

Oscillators Replacement Considerations

Consult official Abracon substitution guides for direct pin-compatible alternatives within the ASGTX5 family. Verify frequency, output type, and voltage compatibility before considering cross-brand replacements.
