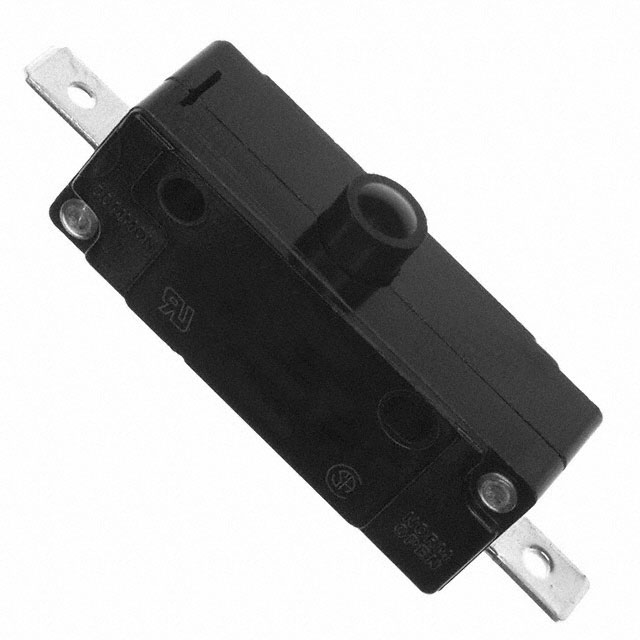

ASKHF3P04AC

ASKHF3P04AC is listed in the Limit Switches range at ChipApex. The manufacturer field lists C&K. Its product description is SWITCH SNAP ACTION SPDT 25A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for ASKHF3P04AC

• Description：SWITCH SNAP ACTION SPDT 25A 125V
• Series：A
• Mfr：C&K
• Package：Tray
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：25A (AC), 2A (DC)
• Voltage Rating - AC：125 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Ingress Protection：-
• Features：-
• Operating Force：567gf
• Release Force：85gf
• Operating Position：-
• Pretravel：0.050" (1.27mm)
• Differential Travel：-
• Overtravel：0.050" (1.27mm)
• Operating Temperature：-55°C ~ 85°C
• Voltage Rating - DC：24 V

Limit Switches datasheet and documents for ASKHF3P04AC
