ASMPM-0806-1R5M-T

Fixed Inductors Overview

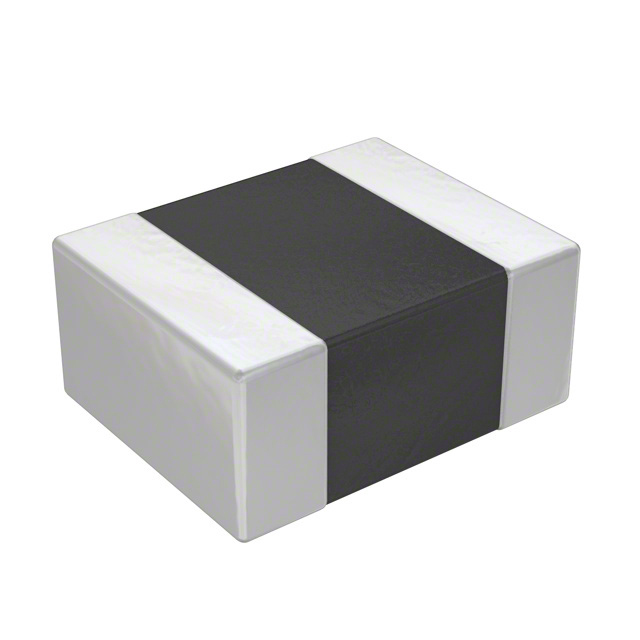

The ASMPM-0806-1R5M-T is a fixed surface-mount power inductor from Abracon LLC, designed for high-current applications. It features an unshielded multilayer construction with an inductance of 1.5 µH and a tolerance of ±20%. The component operates within a maximum DC current of 2.1 A and exhibits a maximum DC resistance of 110 mΩ. Its compact physical dimensions are 2 mm in length, 1.6 mm in width, and 1 mm in height, corresponding to the 0806 (2016 metric) package size.

Fixed Inductors Feature Summary

• Multilayer construction providing stable inductance characteristics
• Compact 0806 footprint suitable for space-constrained designs
• Designed for high-power density applications

Fixed Inductors Applications

• Power supply circuits
• General electronic equipment requiring compact filtering

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official Abracon documentation to confirm availability and compliance status. Ensure that the unshielded nature of this component aligns with your electromagnetic interference requirements. Cross-reference electrical parameters such as saturation current and DC resistance with the latest datasheet before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component when a low-profile, high-power inductor is required for space-limited boards. The 1.5 µH value and 2.1 A rating suit moderate power conversion tasks. Consider the unshielded design implications for nearby sensitive traces. Compare against shielded alternatives if EMI mitigation is critical for the specific application environment.

Fixed Inductors Part Context

This part belongs to Abracon's ASMPM series of high-power chip inductors. These components utilize multilayer technology to achieve high current handling in small packages. The series targets applications demanding reliable performance in power management systems where board real estate is limited.

Fixed Inductors Replacement Considerations

Direct substitutes may include other 1.5 µH, 0806-sized inductors from different manufacturers. Verify that replacement parts match the 2.1 A current rating and 110 mΩ resistance specifications. Ensure the replacement maintains compatibility with the assembly process and thermal requirements.
