ASMT-YTB0-0AA02

Overview

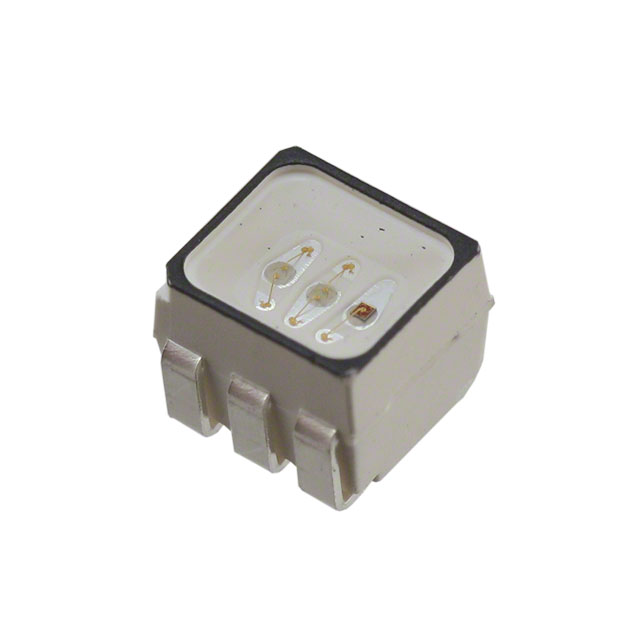

The ASMT-YTB0-0AA02 is a surface-mount RGB LED in a 6-SMD, J-Lead (PLCC-6) package. It emits red at 621 nm, green at 528 nm, and blue at 470 nm. Typical forward voltages are 2.1 V for red and 3.2 V for green/blue. Luminous intensity reaches 648 mcd (red), 1243 mcd (green), and 238 mcd (blue). The component features a clear lens with a 120-degree viewing angle and operates within a temperature range of -40°C to +110°C.

Feature Summary

• Integrates three distinct semiconductor chips for full-color mixing
• Provides high luminous intensity output across the spectrum
• Features a clear optical lens for precise light direction

Applications

• Status indication on electronic circuit boards
• Backlighting for control panel interfaces
• Decorative lighting modules

Procurement Notes

Verify component authenticity through authorized channels due to widespread counterfeiting risks. Confirm RoHS compliance status matches current regulatory requirements. Check datasheet revisions for any recent parameter updates or manufacturing site changes before finalizing procurement specifications.

Selection Notes

Select this model when a standard PLCC-6 footprint is required for space-constrained designs. Ensure driver circuits accommodate the specific forward voltage differences between the red and blue/green channels. Verify that the clear lens specification aligns with the desired optical distribution pattern for the application.

Part Context

This part belongs to Broadcom's ASMT series of multi-color LEDs. It utilizes a common anode configuration within a compact surface-mount form factor. The device is designed for automated pick-and-place assembly processes typical in modern PCB manufacturing environments.

Replacement Considerations

ASMT-QTC0-0AA02 offers similar electrical characteristics but uses a 4-PLCC package. ASMT-YTD7-0AA02 provides diffused optics instead of clear lenses. Verify pin compatibility and mechanical dimensions before substituting.
