ASMT-YTB2-0BB02

Overview

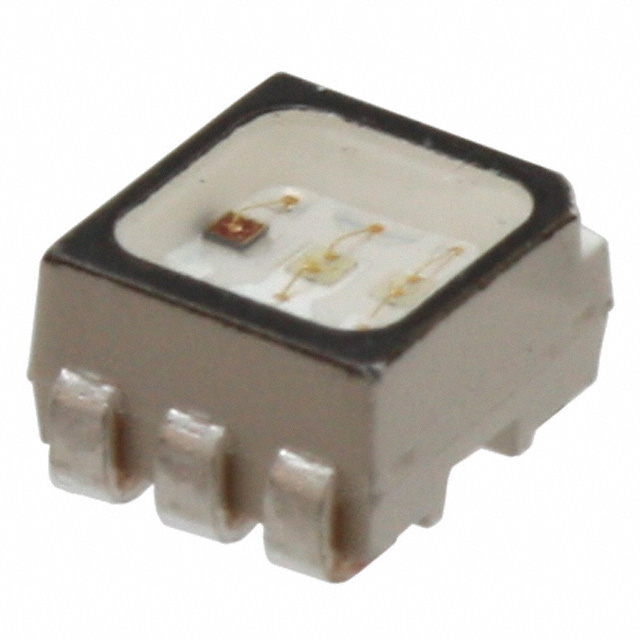

The ASMT-YTB2-0BB02 is a surface-mount RGB LED in a PLCC-6 package. It features a clear square lens with dimensions of 2.3 mm x 2.3 mm and a height of 1.8 mm. The component operates within a temperature range of -40°C to +110°C. Electrical parameters include forward currents of 20 mA for all channels. Forward voltages are 2.1 V (Red), 3.2 V (Green), and 3.2 V (Blue). Optical specifications list wavelengths at 622 nm, 530 nm, and 470 nm. Light intensities are rated at 745 mcd, 1600 mcd, and 360 mcd respectively. Power ratings are 114 mW, 114 mW, and 125 mW. The viewing angle is 120 degrees.

Feature Summary

• Integrates red, green, and blue emitters into a single compact surface-mount package
• Features a clear square lens designed for precise optical transmission
• Supports wide operating temperatures up to +110°C for demanding environments

Applications

• Multi-color status indication in electronic devices
• Backlighting applications requiring full color mixing
• Indicator lights for consumer electronics and appliances

Procurement Notes

Verify the specific suffix against official Broadcom documentation to confirm optical characteristics. Ensure compatibility with moisture sensitivity level requirements during storage and handling. Confirm that the PLCC-6 footprint matches the target PCB design. Check RoHS compliance status for regulatory adherence. Validate thermal management capabilities for the intended application environment.

Selection Notes

Choose this component when a standard PLCC-6 form factor is required for space-constrained designs. Select based on the specific wavelength and intensity requirements for the desired color output. Consider the clear lens option if maximum light transmission efficiency is prioritized over diffusion. Evaluate the high-temperature rating for applications exceeding standard commercial limits.

Part Context

This part belongs to the ASMT series of multi-color LEDs manufactured by Broadcom Limited. The series offers various configurations including diffused and clear lenses. The PLCC-6 package is a common industry standard for surface-mount LED indicators. This specific model provides independent control of red, green, and blue channels for full color generation.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
