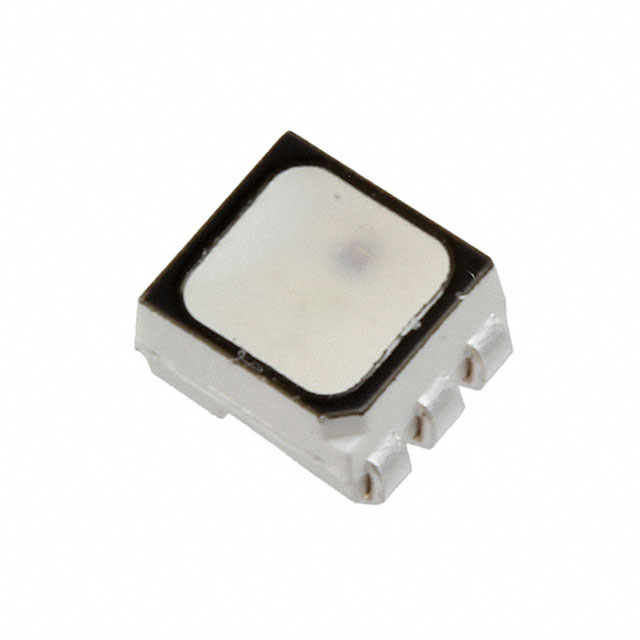

ASMT-YTB7-0AA02

$1.25

Description：LED RGB DIFFUSED 6PLCC SMD
Series：-
Mfr：Broadcom Limited
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b54147d9e3a1 Category: LED Indication - Discrete Brand: Broadcom Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED RGB DIFFUSED 6PLCC SMD
Series：-
Mfr：Broadcom Limited
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Green, Blue (RGB)
Configuration：Independent
Lens Color：-
Lens Transparency：Diffused
Millicandela Rating：650mcd Red, 1900mcd Green, 384mcd Blue
Lens Style：Square with Flat Top
Lens Size：2.30mm
Voltage - Forward (Vf) (Typ)：2.1V Red, 3.1V Green, 3.1V Blue
Current - Test：20mA Red, 20mA Green, 20mA Blue
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：623nm Red, 529nm Green, 469nm Blue
Wavelength - Peak：630nm Red, 522nm Green, 465nm Blue
Features：-
Package / Case：6-SMD, J-Lead
Supplier Device Package：6-PLCC
Size / Dimension：3.00mm L x 2.80mm W
Height (Max)：2.00mm
Grade：-
Qualification：-

Download product information

ASMT-YTB7-0AA02

Overview

The ASMT-YTB7-0AA02 is a surface-mount RGB LED indicator manufactured by Broadcom Limited. It features a diffused lens in a 6-PLCC package with J-leads. The component emits red light at a peak wavelength of 630nm, green light at 522nm, and blue light at 465nm. Typical forward voltages are 2.1V for red and 3.1V for green and blue channels. Optical intensity ratings are 650mcd for red, 1900mcd for green, and 384mcd for blue. The device has a viewing angle of 120 degrees and measures 3.00mm x 2.80mm x 2.00mm.

Feature Summary

Integrates three independent LEDs (red, green, blue) within a single compact surface-mount package
Features a square diffused lens design to provide uniform light distribution
Supports standard surface mount assembly processes on printed circuit boards

Applications

Status indication in electronic devices
Multi-color signaling in consumer electronics
Visual feedback in industrial control panels

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required optical characteristics and packaging formats. Confirm moisture sensitivity level handling procedures during storage and reflow soldering. Check RoHS compliance status against current environmental regulations. Validate lead configuration matches the target PCB footprint design.

Selection Notes

Select this component when a compact RGB solution is required for space-constrained designs. Consider the specific luminous intensity requirements for each color channel. Ensure the forward voltage specifications align with the driving circuit capabilities. Verify the viewing angle meets the visibility requirements of the application environment.

Part Context

This part belongs to the ASMT series of multi-color LED indicators from Broadcom Limited. It utilizes a standard PLCC-6 form factor common in surface-mount technology applications. The product line focuses on providing integrated color mixing solutions in small packages.
