ASMT-YTC7-0AA02
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED RGB DIFFUSED 6PLCC SMD
- Series：-
- Mfr：Broadcom Limited
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：Independent
- Lens Color：-
- Lens Transparency：Diffused
- Millicandela Rating：330mcd Red, 840mcd Green, 160mcd Blue
- Lens Style：Square with Flat Top
- Lens Size：2.30mm
- Voltage - Forward (Vf) (Typ)：2.1V Red, 3.1V Green, 3.1V Blue
- Current - Test：20mA Red, 20mA Green, 20mA Blue
- Viewing Angle：110°
- Mounting Type：Surface Mount
- Wavelength - Dominant：623nm Red, 529nm Green, 469nm Blue
- Wavelength - Peak：630nm Red, 522nm Green, 465nm Blue
- Features：-
- Package / Case：6-SMD, J-Lead
- Supplier Device Package：6-PLCC
- Size / Dimension：3.00mm L x 2.80mm W
- Height (Max)：2.00mm
- Grade：-
- Qualification：-
Download product information
Overview

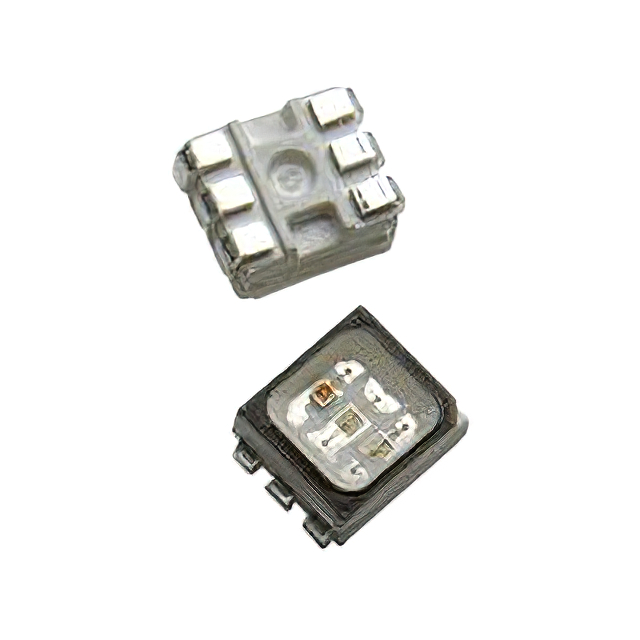

The ASMT-YTC7-0AA02 is a surface-mount RGB LED in a 6-PLCC package with dimensions of 3.00mm length, 2.80mm width, and 2.00mm maximum height. It features a diffused square lens with a flat top and a viewing angle of 110 degrees. The component emits red light at 623nm (peak 630nm), green at 529nm (peak 522nm), and blue at 469nm (peak 465nm). Typical forward voltages are 2.1V for red and 3.1V for green and blue. Luminous intensities are 330mcd for red, 840mcd for green, and 160mcd for blue at a test current of 20mA per color.
Feature Summary
- Integrates three independent LEDs (red, green, blue) into a single compact surface-mount package
- Features a diffused lens design to provide uniform light distribution
- Supports full-color mixing capabilities through individual channel control
Applications
- Status indication in electronic devices
- Backlighting for user interface controls
- Visual signaling in consumer electronics
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm optical and electrical characteristics. Ensure compatibility with RoHS3 compliance requirements and moisture sensitivity level 3 handling procedures during storage and assembly processes.
Selection Notes
Select this component when a compact RGB solution is required for space-constrained designs. Consider the specific luminous intensity ratios and wavelength specifications to ensure accurate color reproduction. Verify that the 6-SMD J-leads package fits the available PCB footprint and soldering profile constraints.
Part Context
This part belongs to the Broadcom ASMT series of multi-color LEDs. It utilizes a standard PLCC-6 form factor commonly used in indicator applications. The device represents a consolidated solution for creating various colors from a single component, simplifying board layout compared to discrete monochrome LEDs.
Replacement Considerations
Consult official substitution lists for compatible RGB components within the same package family. Verify pinout compatibility and thermal characteristics before replacing with alternative manufacturers' offerings.
