ASMW-LR00-ASU0E

Overview

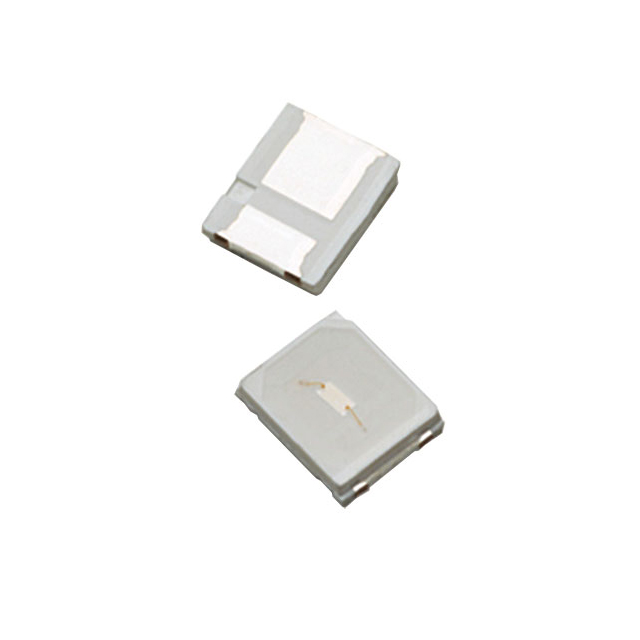

The ASMW-LR00-ASU0E is a single-color red surface-mount LED from the ASMW-LA00 series, manufactured by Broadcom Limited. It utilizes a 2835 (reversed) package configuration and is rated for 0.5W power dissipation. The component operates with a test current of 150mA and features a standard color configuration. This device is designed for high-brightness indication applications in electronic circuits.

Feature Summary

• High brightness output capability for clear visibility
• Standard surface-mount design for automated assembly
• Single-color red emission profile

Applications

• Electronic status indication
• Panel indicator lights
• Consumer electronics signaling

Procurement Notes

Verify component obsolescence status prior to procurement as this part is marked obsolete. Confirm availability of recommended substitutes such as CSMW-LR00-ATV0E if production continuity is required. Ensure compatibility with existing PCB footprints when selecting replacement components.

Selection Notes

Select this component for applications requiring a standard red SMD LED with 2835 reversed package dimensions. Consider the 150mA test current rating for drive circuit design. Evaluate alternative parts from the same manufacturer family if original stock is unavailable due to end-of-life status.

Part Context

This component belongs to the ASMW-LA00 series of high-brightness LEDs produced by Broadcom Limited. The series focuses on surface-mount technology solutions for compact electronic designs. The specific model represents a red variant within this product line, utilizing standardized packaging for widespread industrial adoption.

Replacement Considerations

CSMW-LR00-ATV0E is a recommended substitute from Broadcom Limited.
