ASPI-0312FS-1R5N-T2

Fixed Inductors Overview

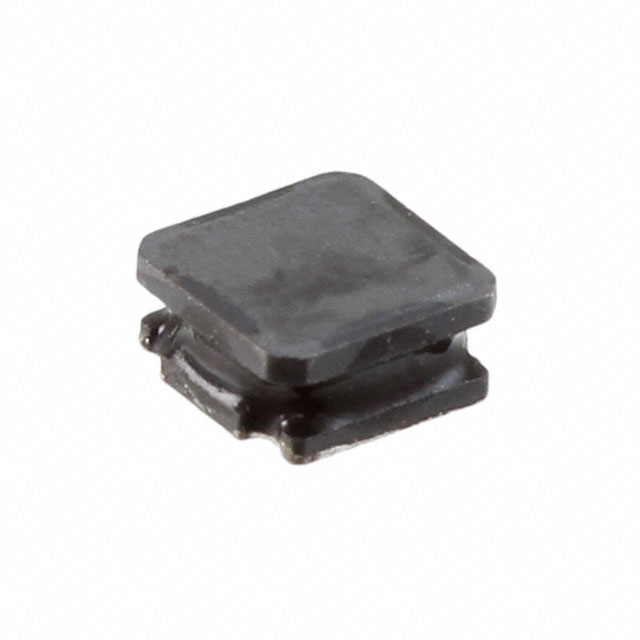

The ASPI-0312FS-1R5N-T2 is a shielded surface-mount power inductor from Abracon LLC, featuring a wirewound drum core design. It offers an inductance of 1.5 µH with a tolerance of ±30%. The component supports a saturation current of 1.4 A and a DC resistance of 60 mΩ. It operates within a temperature range of -40°C to +125°C and is supplied in tape and reel packaging.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference
• Wirewound drum core provides high current handling
• Low profile surface mount package for space efficiency

Fixed Inductors Applications

• DC-DC converter output filtering
• Power supply input stages
• Portable electronic device power management

Fixed Inductors Procurement Notes

Verify the specific suffix T2 corresponds to the required tape and reel quantity during procurement. Confirm RoHS compliance status through official documentation before integration. Ensure storage conditions align with manufacturer guidelines to maintain component integrity.

Fixed Inductors Selection Notes

Select this component when low profile and high current density are required. Compare DCR and saturation current against circuit requirements. Verify footprint compatibility with PCB layout constraints. Consider thermal performance under maximum load conditions.

Fixed Inductors Part Context

This part belongs to the ASPI-0312FS series of low-profile shielded SMD chip power inductors. The series is designed for applications requiring compact size and robust performance in power conversion circuits.

Fixed Inductors Replacement Considerations

Check for direct substitutes within the same series or compatible packages. Verify electrical parameters match exactly. Consult manufacturer documentation for approved alternatives.
