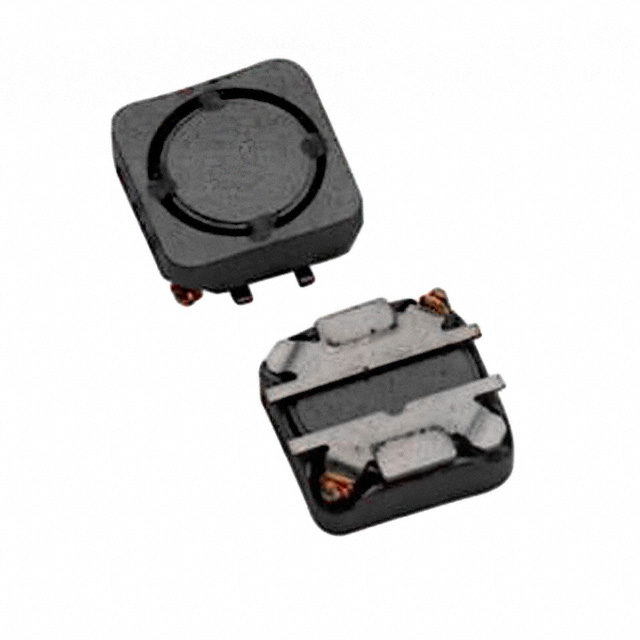

ASPI-0418S-5R6N-T3 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is FIXED IND 5.6UH 1.25A 132MOHM SM. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for ASPI-0418S-5R6N-T3
- Description：FIXED IND 5.6UH 1.25A 132MOHM SM
- Series：ASPI-0418S
- Mfr：Abracon LLC
- Package：Tape & Reel (TR)
- Type：Drum Core, Wirewound
- Material - Core：Ferrite
- Inductance：5.6 µH
- Tolerance：±30%
- Current Rating (Amps)：1.25 A
- Current - Saturation (Isat)：1.1A
- Shielding：Shielded
- DC Resistance (DCR)：132mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-25°C ~ 100°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.165" L x 0.165" W (4.20mm x 4.20mm)
- Height - Seated (Max)：0.071" (1.80mm)
- Features：-
Fixed Inductors datasheet and documents for ASPI-0418S-5R6N-T3
Fixed Inductors Overview
The ASPI-0418S-5R6N-T3 is a fixed shielded drum core wirewound inductor manufactured by Abracon LLC. It features an inductance of 5.6 µH with a tolerance of ±30%. The component has a maximum DC resistance of 132 mΩ and a rated current of 1.25 A, with a saturation current of 1.1 A. Designed for surface mount applications, it operates within a temperature range of -40°C to +125°C and offers a self-resonant frequency of 30 MHz at a test frequency of 100 kHz.
Fixed Inductors Feature Summary
- Magnetic shielding design minimizes electromagnetic radiation interference
- Drum core construction provides stable inductance characteristics
- Compact surface-mount package facilitates automated PCB assembly
Fixed Inductors Applications
- DC/DC converter circuits
- Portable communication equipment
- Network hubs and routers
Fixed Inductors Procurement Notes
Verify the specific suffix 'T3' against the official Abracon datasheet to confirm tape-and-reel packaging specifications. Confirm that the 132 mΩ DCR and 1.25 A rating align with your circuit requirements. Check RoHS compliance status as per the latest manufacturer documentation before finalizing procurement orders.
Fixed Inductors Selection Notes
Select this component when a compact, shielded inductor is required for space-constrained designs. Ensure the 1.1 A saturation current meets the peak current demands of the application. Compare the 132 mΩ resistance against efficiency targets for power delivery networks.
Fixed Inductors Part Context
This part belongs to the ASPI-0418S series of low-profile shielded power inductors. The series is designed for high-frequency switching applications where magnetic shielding is critical to prevent noise coupling. It utilizes a wirewound drum core structure to balance energy storage capabilities with physical footprint constraints.
Fixed Inductors Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Cross-reference with other Abracon ASPI series components only if electrical parameters match exactly.
