ASPI-2515-100M-T2

Fixed Inductors Overview

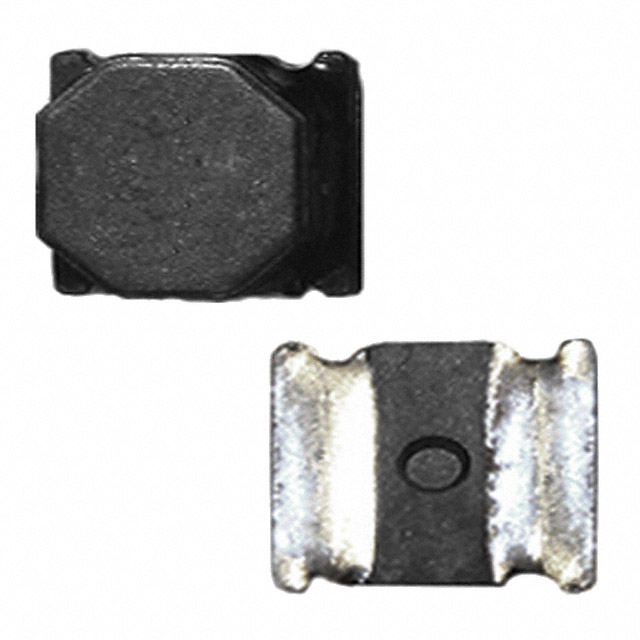

The ASPI-2515-100M-T2 is a fixed shielded drum core wirewound inductor from Abracon LLC. It features an inductance of 10 µH with a tolerance of ±20%. The component has a maximum DC current rating of 750 mA and a DC resistance of 445 mΩ. Its physical dimensions are 2.5 mm in length, 2 mm in width, and 1.5 mm in height. The device utilizes a molded core construction and is designed for surface mount assembly.

Fixed Inductors Feature Summary

• Shielded drum core construction minimizes electromagnetic interference
• Wirewound design ensures stable inductance performance
• Compact nonstandard package suitable for space-constrained layouts

Fixed Inductors Applications

• Power supply filtering circuits
• DC-DC converter input/output stages
• General purpose power inductor applications

Fixed Inductors Procurement Notes

Verify the specific datasheet version to confirm electrical parameters such as DCR and saturation current. Ensure the tape and reel packaging matches your automated placement equipment requirements. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components. Confirm RoHS compliance status if required by your manufacturing standards.

Fixed Inductors Selection Notes

Select this component when a compact shielded inductor is required for low-current power applications. The 10 µH value suits moderate frequency switching regulators. Consider the 750 mA current limit against peak load demands. The shielded design is preferred over unshielded types to reduce noise coupling in dense PCB layouts.

Fixed Inductors Part Context

This part belongs to the ASPI series of surface mount power inductors. The series offers various inductance values and current ratings within similar footprint constraints. It is manufactured by Abracon LLC, a provider of passive electronic components. The ASPI series is designed for general-purpose power electronics applications requiring reliable magnetic shielding.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative shielded drum core inductors having identical 10 µH inductance, 750 mA current rating, and compatible physical dimensions before substitution.
