ASPI-F1010-6R8M-T

Fixed Inductors Overview

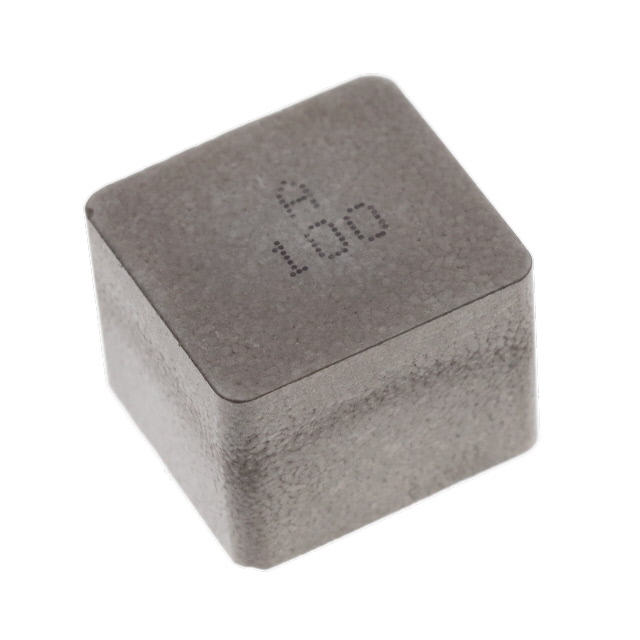

The ASPI-F1010-6R8M-T is a shielded molded power inductor from Abracon LLC, featuring a ferrite core and wirewound construction. It offers an inductance of 6.8 µH with a ±20% tolerance, tested at 100 kHz. The component supports a continuous current rating of 18.5 A and a saturation current of 19.5 A, with a maximum DC resistance of 8.9 mΩ. Designed for surface mount installation, it operates within a temperature range of -40°C to +125°C.

Fixed Inductors Feature Summary

• Shielded molded construction minimizes electromagnetic interference
• Soft saturation characteristic maintains inductance under high current loads
• Low DC resistance enables high efficiency power conversion
• High temperature current rating ensures stability in demanding environments

Fixed Inductors Applications

• Point-of-load (POL) voltage regulation modules
• DC-DC converter output filtering
• High-current power distribution networks
• Server and data center power supplies

Fixed Inductors Procurement Notes

Verify the specific suffix and tape/reel specifications against the manufacturer datasheet before ordering. Confirm that the 18.5 A rating aligns with your thermal management design. Ensure PCB footprint compatibility with the 10x10 mm package dimensions. Check RoHS3 compliance status if required by your supply chain standards.

Fixed Inductors Selection Notes

Select this component when high current handling and low impedance are critical. The shielded design reduces magnetic coupling issues in dense layouts. Compare saturation current limits against peak load requirements. Consider the higher cost relative to unshielded variants due to the molded construction and performance capabilities.

Fixed Inductors Part Context

This part belongs to the ASPI-F series of shielded power inductors. It is designed for applications requiring robust performance in high-current scenarios. The series utilizes a molded structure to provide mechanical stability and consistent electrical characteristics across operating temperatures.

Fixed Inductors Replacement Considerations

Direct substitutes must match the 6.8 µH value, 18.5 A current rating, and 10x10 mm footprint. Verify shielding type and saturation characteristics to ensure circuit stability. Consult manufacturer cross-reference lists for equivalent parts with identical electrical parameters.
