ASPI-U252010-R68M-T

$0.26

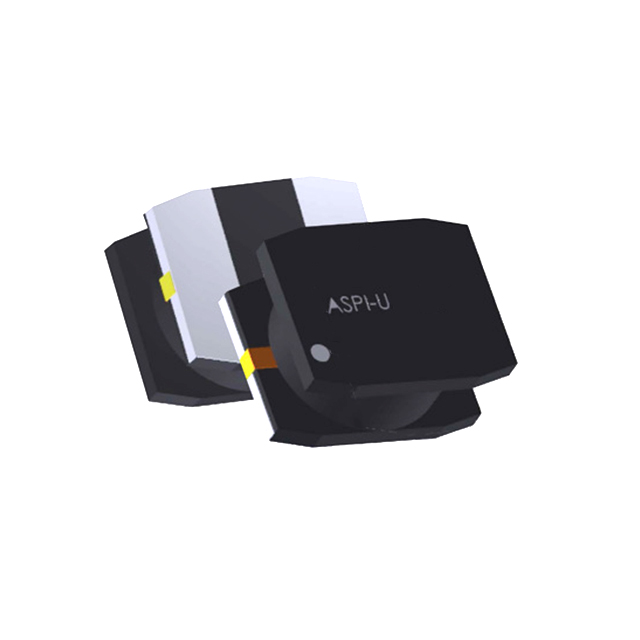

Description：FIXED IND 680NH SMD
Series：ASPI-U
Mfr：Abracon LLC
Package：Tape & Reel (TR)

SKU:c7df593fb627 Category: Fixed Inductors Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ASPI-U252010-R68M-T is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is FIXED IND 680NH SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for ASPI-U252010-R68M-T

Description：FIXED IND 680NH SMD
Series：ASPI-U
Mfr：Abracon LLC
Package：Tape & Reel (TR)
Type：Wirewound
Material - Core：-
Inductance：680 nH
Tolerance：±20%
Current Rating (Amps)：-
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：-
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard, 2 Lead
Supplier Device Package：-
Size / Dimension：0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)：0.039" (1.00mm)
Features：-

Fixed Inductors datasheet and documents for ASPI-U252010-R68M-T

ASPI-U252010-R68M-T

Fixed Inductors Overview

The ASPI-U252010-R68M-T is a power inductor from the Abracon LLC ASPI-U252010 series, designed for surface-mount applications. It features an inductance of 680 nH with a tolerance of 20%. The component operates within a temperature range of -40°C to +125°C and utilizes a metal alloy core material. Key electrical specifications include a maximum DC current rating of 3.3 A and a saturation current of 8.5 A. The device exhibits a maximum DC resistance of 43 mOhms and measures 2.5 mm by 2.0 mm by 1.0 mm.

Fixed Inductors Feature Summary

Shielded construction minimizes electromagnetic radiation
Low profile design suitable for compact PCB layouts
Large terminal surfaces ensure robust PCB bonding

Fixed Inductors Applications

DC/DC switching converters
Portable communication equipment
Network hubs and routers

Fixed Inductors Procurement Notes

Verify the specific package dimensions and lead configuration against the official datasheet before integration. Confirm that the operating temperature range meets the environmental requirements of the target application. Ensure compatibility with standard surface-mount assembly processes. Cross-reference the manufacturer part number to avoid confusion with similar series variants.

Fixed Inductors Selection Notes

Select this component when space constraints require a low-profile inductor with moderate current handling capabilities. The shielded design makes it suitable for applications sensitive to electromagnetic interference. Consider the saturation current limits relative to peak load conditions during circuit design. Evaluate the DC resistance impact on overall system efficiency.

Fixed Inductors Part Context

This model belongs to the ASPI-U252010 series of resin-shielded power inductors. The series is characterized by its compact footprint and high energy storage capacity. It is engineered for use in various consumer electronics and computing devices requiring reliable power filtering.
