ASPIAIG-F1265-1R5M-T

Fixed Inductors Overview

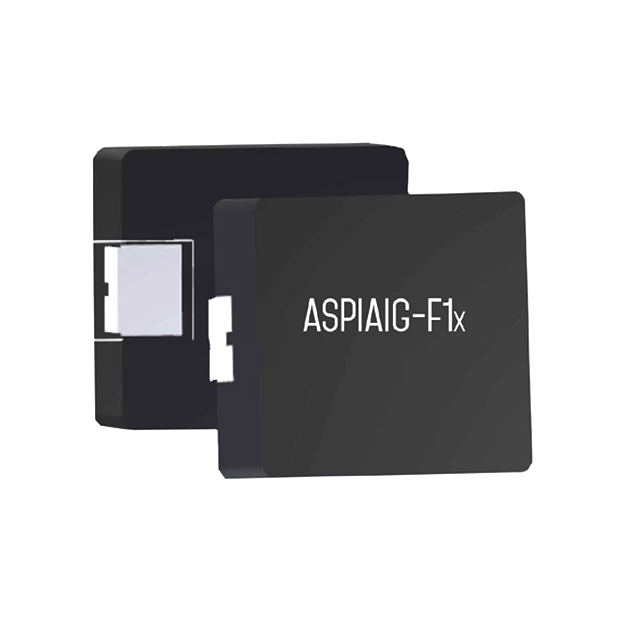

The ASPIAIG-F1265-1R5M-T is a fixed power inductor from Abracon LLC, designed for automotive applications. It features a shielded molded construction with an inductance of 1.5 µH and a tolerance of ±20%. The component supports a high current rating of 27 A with a maximum DC resistance of 3 mΩ. Operating at frequencies up to 100 kHz, it meets the AEC-Q200 qualification standard. The physical dimensions are 13.5 mm in length, 12.5 mm in width, and 6.2 mm in height, utilizing a surface-mount package.

Fixed Inductors Feature Summary

• Shielded molded design reduces electromagnetic interference
• High current handling capability suitable for power circuits
• Automotive-grade reliability certified to AEC-Q200 standards

Fixed Inductors Applications

• Automotive power supply systems
• High-power motor control cabinets
• Automotive electronic modules requiring EMI suppression

Fixed Inductors Procurement Notes

Verify the specific suffix 'T' indicates tape-and-reel packaging when ordering. Confirm that the AEC-Q200 qualification aligns with your automotive project requirements. Ensure the 27 A current rating and 3 mΩ DCR meet your circuit's thermal and efficiency constraints. Cross-reference the 13.5 x 12.5 x 6.2 mm footprint with your PCB layout guidelines before finalizing procurement.

Fixed Inductors Selection Notes

Select this component for applications requiring high current density and low magnetic interference. The shielded structure makes it suitable for dense PCB layouts where EMI is a concern. Compare the 1.5 µH value against other series variants if different inductance or current ratings are needed. Verify compatibility with automated surface-mount assembly processes given the reel packaging format.

Fixed Inductors Part Context

This part belongs to the ASPIAIG-F1265 series of automotive power inductors. The series utilizes metal alloy cores and molded shielding technology. Similar parts in the family include variants with different inductance values such as R47M-T, maintaining the same physical footprint and shielding characteristics while adjusting electrical performance parameters.

Fixed Inductors Replacement Considerations

Direct substitutes within the same series include ASPIAIG-F1265-R47M-T for different inductance needs. Verify that any replacement maintains the AEC-Q200 certification and identical mounting dimensions. Check current ratings and DCR specifications to ensure equivalent thermal performance in the target application.
