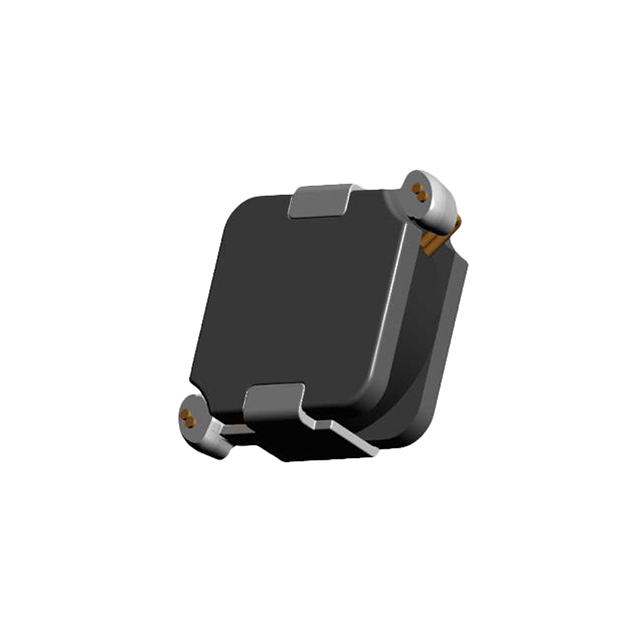

ASPIAIG-H6530-3R3M-T is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is FIXED IND 3.3UH 7A 30.5 MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for ASPIAIG-H6530-3R3M-T
- Description：FIXED IND 3.3UH 7A 30.5 MOHM SMD
- Series：ASPIAIG-H6530
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Drum Core, Wirewound
- Material - Core：Metal
- Inductance：3.3 µH
- Tolerance：±20%
- Current Rating (Amps)：7:00 AM
- Current - Saturation (Isat)：6.6A
- Shielding：Shielded
- DC Resistance (DCR)：30.5mOhm
- Q @ Freq：-
- Frequency - Self Resonant：23MHz
- Ratings：AEC-Q200
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.280" L x 0.256" W (7.10mm x 6.50mm)
- Height - Seated (Max)：0.126" (3.20mm)
- Features：-
Fixed Inductors datasheet and documents for ASPIAIG-H6530-3R3M-T
Fixed Inductors Overview
The ASPIAIG-H6530-3R3M-T is a fixed surface-mount power inductor manufactured by Abracon LLC. It features a molded shielded core design with an inductance of 3.3 µH and a tolerance of ±20%. The component supports a maximum DC current of 7 A and has a maximum DC resistance of 30.5 mΩ. It operates within a temperature range of -40°C to +125°C.
Fixed Inductors Feature Summary
- Shielded SMD construction for reduced electromagnetic interference
- Molded core structure for mechanical stability
- Automotive-grade reliability specifications
Fixed Inductors Applications
- Automotive electronic circuits
- Power supply filtering
- DC-DC converter stages
Fixed Inductors Procurement Notes
Verify the obsolete status of this specific part number before initiating any procurement activities. Confirm availability of valid substitutes through authorized distributors. Ensure that replacement components meet all original electrical and physical requirements. Check for RoHS compliance documentation. Validate supplier authenticity to prevent counterfeit risks.
Fixed Inductors Selection Notes
Select this component for applications requiring compact, shielded power inductors with high current handling capabilities. Consider the specific package dimensions and thermal characteristics during PCB layout. Evaluate alternative active parts if stock is unavailable due to obsolescence. Ensure the replacement matches the required inductance and saturation current ratings.
Fixed Inductors Part Context
This component belongs to the ASPIAIG series of power inductors designed for demanding environments. The series offers various inductance values and current ratings in standardized and non-standard packages. It is engineered for automotive and industrial applications where space constraints and EMI suppression are critical factors.
Fixed Inductors Replacement Considerations
The manufacturer lists this part as obsolete. Verify available substitute part numbers from Abracon or compatible third-party equivalents that match the 3.3 µH inductance, 7 A current rating, and physical footprint.
