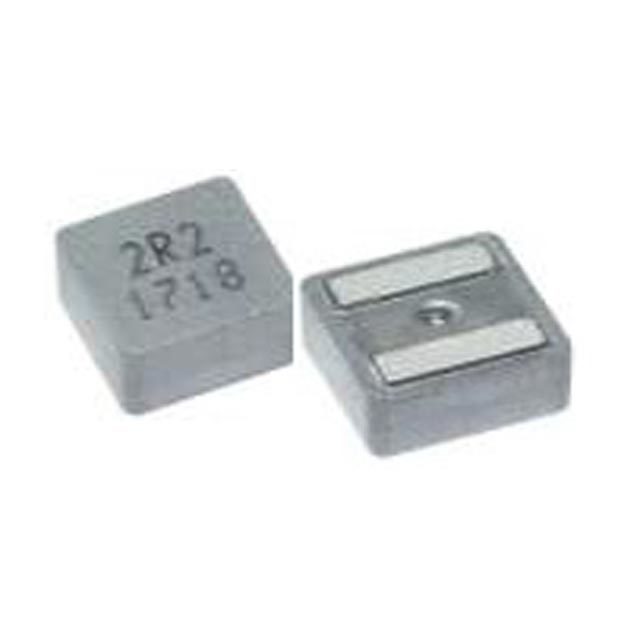

ASPIAIG-Q5030-2R2M-T is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is FIXED IND 2.2UH 9.7A 14.5MOHM SM. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for ASPIAIG-Q5030-2R2M-T
- Description：FIXED IND 2.2UH 9.7A 14.5MOHM SM
- Series：ASPIAIG-Q5030
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Molded
- Material - Core：Alloy Powder
- Inductance：2.2 µH
- Tolerance：±20%
- Current Rating (Amps)：9.7 A
- Current - Saturation (Isat)：9A
- Shielding：Shielded
- DC Resistance (DCR)：14.5mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：AEC-Q200
- Operating Temperature：-55°C ~ 155°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.236" L x 0.224" W (6.00mm x 5.70mm)
- Height - Seated (Max)：0.122" (3.10mm)
- Features：-
Fixed Inductors datasheet and documents for ASPIAIG-Q5030-2R2M-T
Fixed Inductors Overview
The Abracon ASPIAIG-Q5030-2R2M-T is a surface-mount power inductor with an inductance of 2.2 uH and a tolerance of 20%. It features a shielded design and a molded core type, suitable for high-current applications. The component supports a maximum DC current of 9.7 A and has a saturation current of approximately 13 A. Its maximum DC resistance is 13.2 mOhms. The device operates within a temperature range of -40°C to +125°C and measures 5.0 mm in length, 3.0 mm in width, and 3.0 mm in height.
Fixed Inductors Feature Summary
- Shielded construction minimizes electromagnetic interference
- High saturation current capability for robust performance
- Automotive-grade reliability certification
Fixed Inductors Applications
- Automotive electronics systems
- Power supply circuits
- DC-DC converters
Fixed Inductors Procurement Notes
Verify the specific part number against official Abracon documentation to confirm electrical parameters and package dimensions. Ensure compatibility with automotive qualification standards if required for the target application. Cross-reference manufacturer datasheets for accurate handling and storage guidelines.
Fixed Inductors Selection Notes
Select this component when a compact, shielded inductor with high current handling is needed for automotive or industrial power stages. Compare saturation characteristics and DC resistance against circuit requirements to ensure efficiency and thermal management meet design specifications.
Fixed Inductors Part Context
This component belongs to the ASPIAIG-Q series, designed specifically for automotive applications. It utilizes a molded shielded structure to provide stability and noise reduction in space-constrained environments typical of modern vehicle electronics.
Fixed Inductors Replacement Considerations
Check for direct substitutes within the ASPIAIG-Q family with matching inductance and current ratings. Verify pinout and footprint compatibility before considering alternative manufacturers' components.
