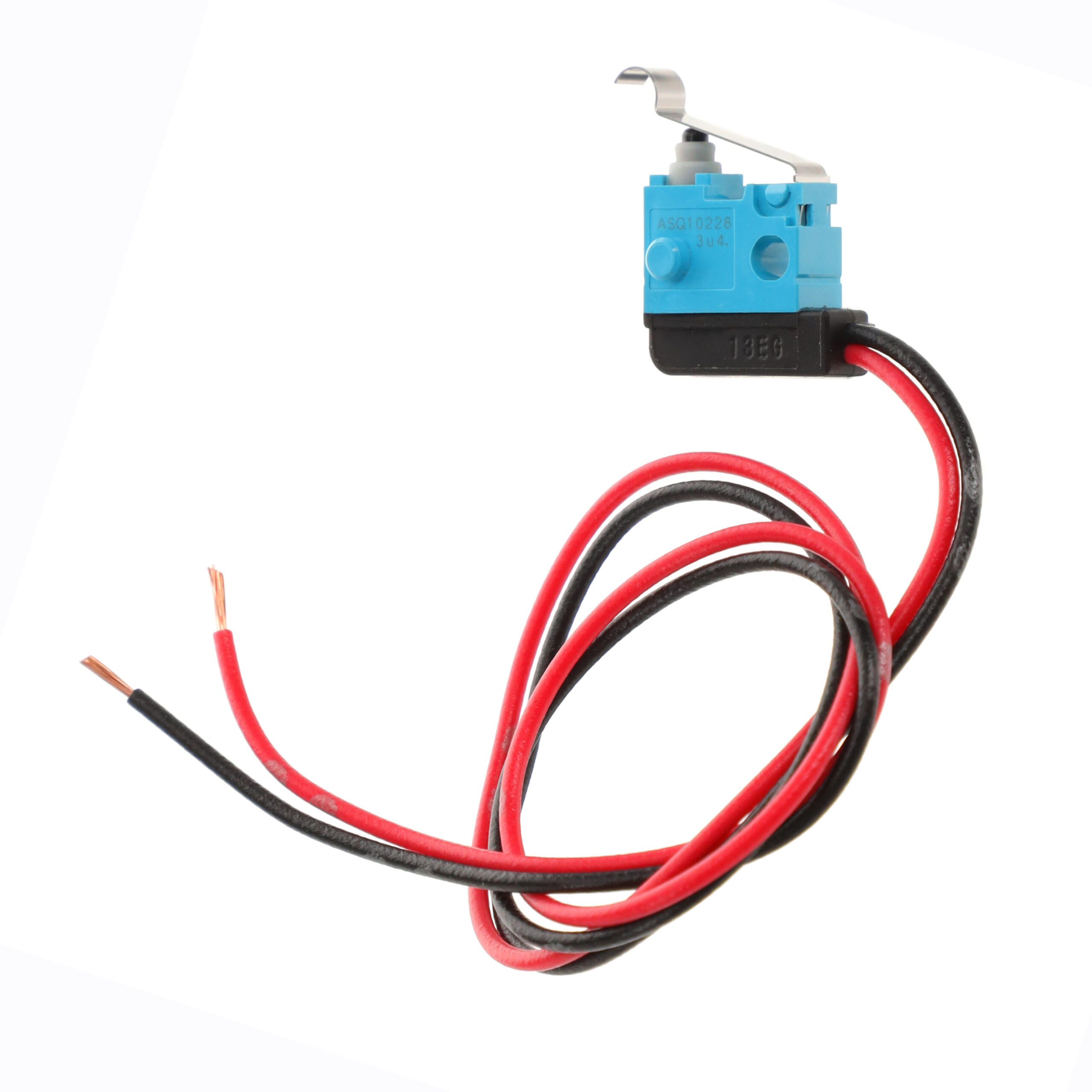

ASQ10228 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is SWITCH SNAP ACT SPST-NC 0.1A 30V. Review the specifications below when checking this part for your BOM.
Limit Switches specifications for ASQ10228
- Description：SWITCH SNAP ACT SPST-NC 0.1A 30V
- Series：ASQ1
- Mfr：Panasonic Electric Works
- Package：Bulk
- Circuit：SPST-NC
- Switch Function：On-Mom
- Current Rating (Amps)：100mA (DC)
- Voltage Rating - AC：-
- Actuator Type：Lever, Simulated Roller
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Ingress Protection：IP67 - Dust Tight, Waterproof
- Features：-
- Operating Force：153gf
- Release Force：-
- Operating Position：0.472" (12.0mm)
- Pretravel：-
- Differential Travel：-
- Overtravel：0.110" (2.8mm)
- Operating Temperature：-40°C ~ 85°C
- Voltage Rating - DC：30 V
Limit Switches datasheet and documents for ASQ10228
