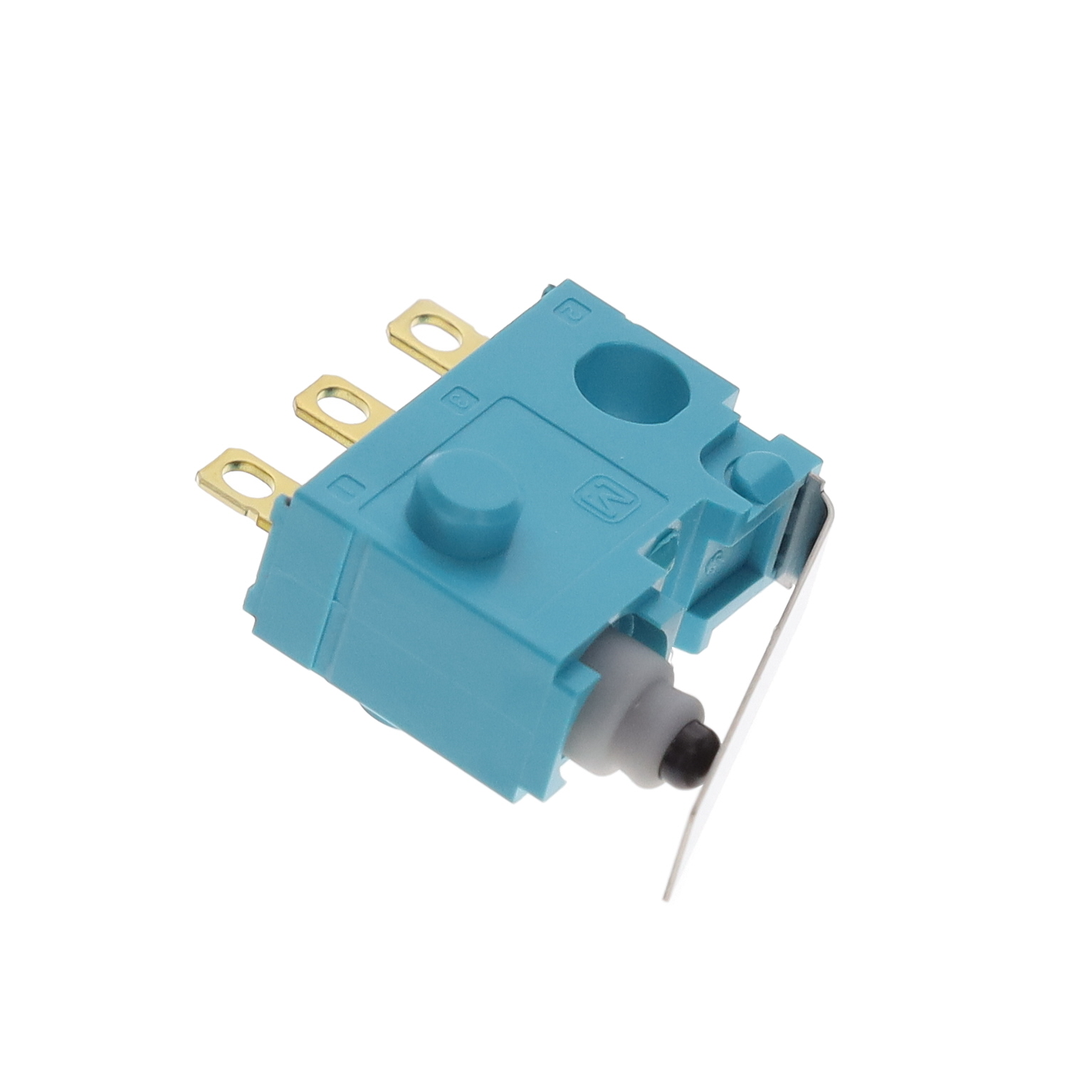

ASQ10417

ASQ10417 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is SWITCH SNAP ACTION SPDT 0.1A 30V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for ASQ10417

• Description：SWITCH SNAP ACTION SPDT 0.1A 30V
• Series：ASQ1
• Mfr：Panasonic Electric Works
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：100mA (DC)
• Voltage Rating - AC：-
• Actuator Type：Lever, Straight
• Mounting Type：Chassis Mount
• Termination Style：Solder Lug
• Ingress Protection：-
• Features：-
• Operating Force：173gf
• Release Force：-
• Operating Position：0.366" (9.3mm)
• Pretravel：-
• Differential Travel：-
• Overtravel：0.102" (2.6mm)
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for ASQ10417
