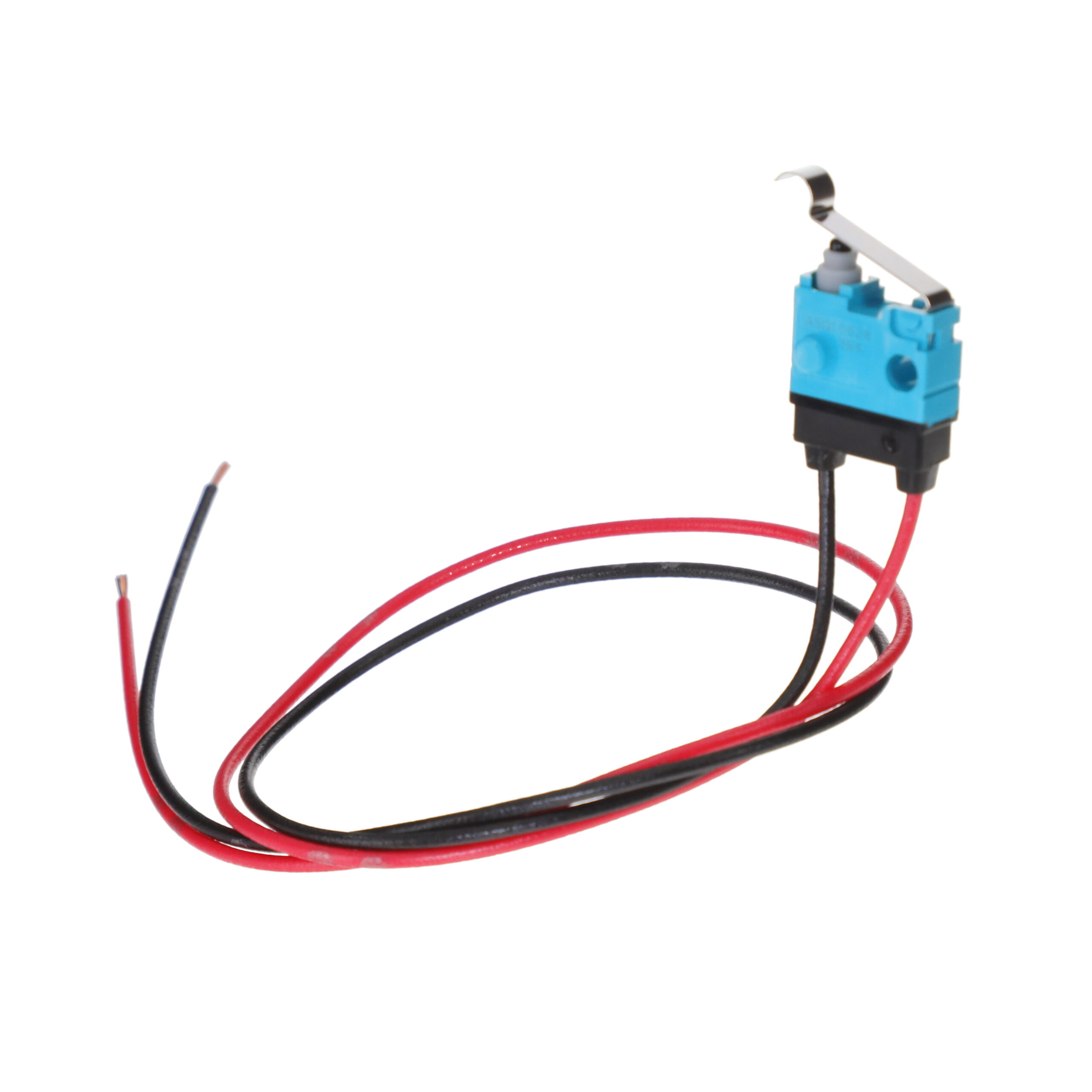

ASQ10628

ASQ10628 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is SWITCH SNAP ACT SPST-NC 0.1A 30V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for ASQ10628

• Description：SWITCH SNAP ACT SPST-NC 0.1A 30V
• Series：ASQ1
• Mfr：Panasonic Electric Works
• Package：Bulk
• Circuit：SPST-NC
• Switch Function：On-Mom
• Current Rating (Amps)：100mA (DC)
• Voltage Rating - AC：-
• Actuator Type：Lever, Simulated Roller
• Mounting Type：Chassis Mount
• Termination Style：Wire Leads
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：-
• Operating Force：153gf
• Release Force：-
• Operating Position：0.472" (12.0mm)
• Pretravel：-
• Differential Travel：-
• Overtravel：0.110" (2.8mm)
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for ASQ10628
