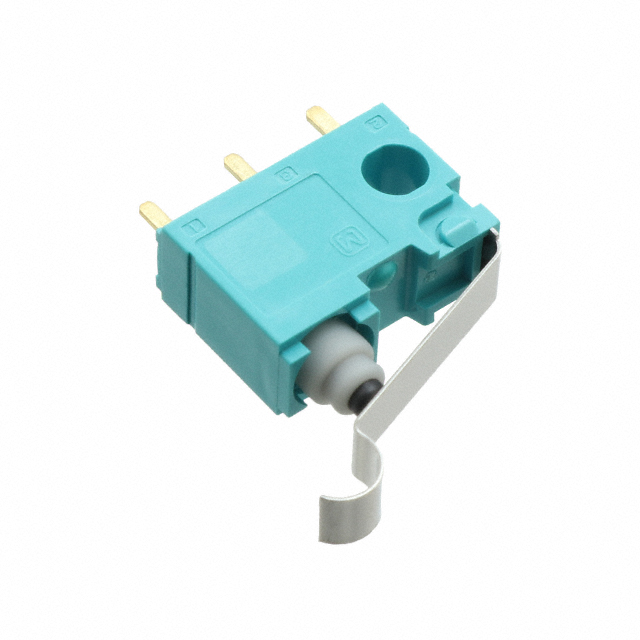

ASQ11518

ASQ11518 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is SWITCH SNAP ACTION SPDT 0.1A 30V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for ASQ11518

• Description：SWITCH SNAP ACTION SPDT 0.1A 30V
• Series：ASQ1
• Mfr：Panasonic Electric Works
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：100mA (DC)
• Voltage Rating - AC：-
• Actuator Type：Lever, Simulated Roller
• Mounting Type：Through Hole
• Termination Style：PC Pin
• Ingress Protection：-
• Features：-
• Operating Force：153gf
• Release Force：-
• Operating Position：0.472" (12.0mm)
• Pretravel：-
• Differential Travel：-
• Overtravel：0.110" (2.8mm)
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for ASQ11518
