ASTMLPD-16.000MHZ-EJ-E-T

Oscillators Overview

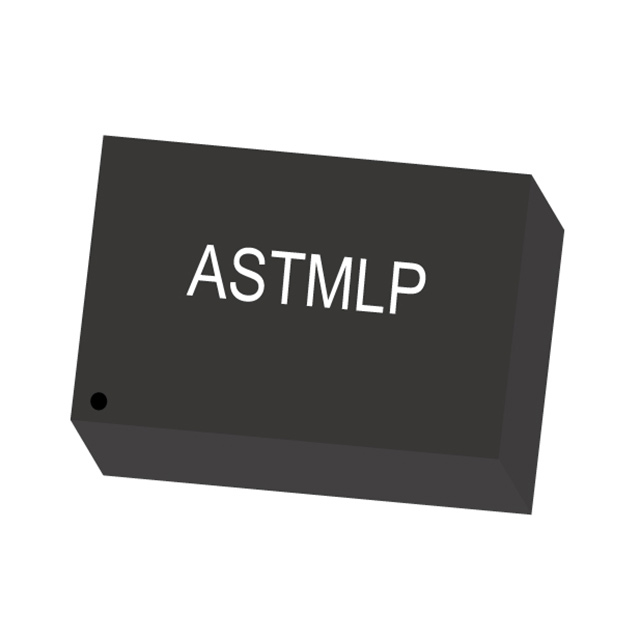

The ASTMLPD-16.000MHZ-EJ-E-T is a MEMS oscillator from the Abracon ASTMLP series, operating at a nominal frequency of 16.000 MHz with an output format of LVCMOS. It features a frequency stability of ±20 ppm and operates within a supply voltage range of 2.25 V to 3.63 V. The device supports enable/disable functionality and draws a maximum current of 4.5 mA during operation. It is housed in a compact 4-SMD, no-lead package measuring 2.5 mm x 2.0 mm with a maximum height of 0.80 mm. The component is rated for an industrial temperature range of -20°C to +70°C.

Oscillators Feature Summary

• Utilizes MEMS technology for reliable clock generation
• Supports active enable and disable control functions
• Provides low-voltage CMOS output signals
• Designed for surface-mount assembly in compact footprints

Oscillators Applications

• Industrial control systems requiring stable timing references
• Embedded computing modules needing low-power oscillators
• Communication equipment utilizing LVCMOS interfaces
• Portable devices constrained by size and power budgets

Oscillators Procurement Notes

Verify the specific suffix EJ-E-T against official Abracon documentation to confirm pinout and electrical characteristics. Confirm that the requested quantity aligns with standard factory packaging limits. Ensure compatibility with existing PCB thermal profiles and soldering processes. Check for any recent product change notifications or lifecycle status updates prior to finalizing procurement orders.

Oscillators Selection Notes

Select this component when a 16 MHz LVCMOS signal is required within a 2.5x2 mm footprint. Consider the ±20 ppm stability requirement for system timing accuracy. Evaluate the 2.25V to 3.63V supply range against available board voltages. Assess the enable/disable feature necessity for power management strategies in the target application design.

Oscillators Part Context

This part belongs to the Abracon ASTMLP series of MEMS oscillators, which are designed to replace traditional quartz crystals in space-constrained applications. The series offers improved shock resistance and lower power consumption compared to equivalent crystal oscillators. The ASTMLPD variant specifically targets ultra-compact designs while maintaining industry-standard timing performance.

Oscillators Replacement Considerations

Publicly confirmed substitute part numbers are not provided in the source data. Verify cross-compatibility with alternative MEMS oscillators based on pin configuration, voltage levels, and frequency stability requirements before substitution.
