AT13-08PA-BM01

Headers, Male Pins Overview

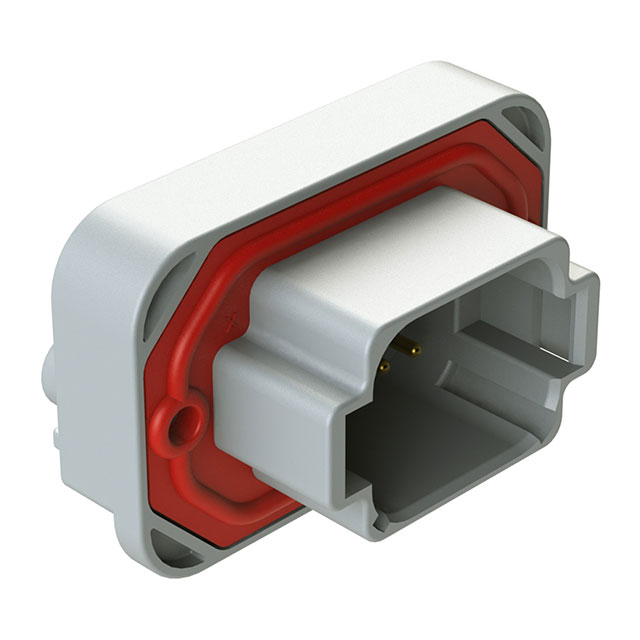

The Amphenol Sine Systems AT13-08PA-BM01 is an ATM Series right-angle receptacle with eight positions and a 4.4 mm pitch. It features gold-plated copper alloy contacts, solder termination, and panel mount installation. The connector provides IP67 environmental protection when mated, operates within a -55°C to +125°C temperature range, and carries UL 94 V-0 flammability ratings. Constructed from thermoplastic housing in brown color, it supports automotive and industrial applications requiring reliable board-to-cable connections.

Headers, Male Pins Feature Summary

• Integrated mating and mounting flanges for secure mechanical attachment
• Board guide features ensure precise alignment during assembly
• Four-wall shielding design protects against environmental intrusion
• Right-angle orientation facilitates compact circuit board routing

Headers, Male Pins Applications

• Automotive electronic systems
• Industrial control equipment
• Board-to-cable interconnects

Headers, Male Pins Procurement Notes

Verify the specific part number against official Amphenol Sine Systems documentation to confirm compatibility with required mating connectors and PCB layouts. Ensure that the right-angle configuration and panel mount style align with the mechanical constraints of the target application. Cross-reference electrical ratings and environmental seals with system requirements before procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring a robust, right-angle receptacle with integrated flanges for panel mounting. The ATM series offers high current capacity and reliable sealing suitable for harsh environments. Consider the physical dimensions and pin count to ensure adequate space on the printed circuit board while meeting the necessary signal or power distribution needs.

Headers, Male Pins Part Context

This connector belongs to the ATM Series, which is designed for demanding automotive and industrial environments. The series emphasizes durability, environmental sealing, and ease of installation through integrated flanges and guides. It represents a standardized solution for board-to-cable connectivity where reliability under vibration and temperature extremes is critical.

Headers, Male Pins Replacement Considerations

Consult official substitution lists for compatible alternatives within the ATM family. Verify that any replacement maintains identical pin counts, pitch dimensions, and mounting configurations to ensure mechanical and electrical interchangeability without redesigning the host system.
