AT1619CI

Overview

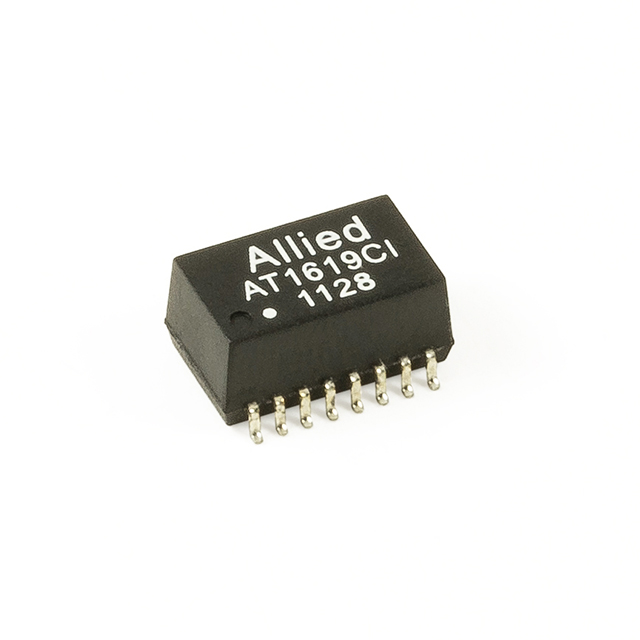

The AT1619CI is a fiber channel LAN filter module manufactured by Allied Components International. It operates within a temperature range of -40°C to +85°C and features a 1CT:1CT turns ratio. The component measures 0.504 inches in length, 0.272 inches in width, and 0.250 inches in height. Designed for 10/100 Base-T speeds, it supports non-PoE applications and utilizes a 16-pin configuration.

Feature Summary

• Integrated fiber channel LAN filtering capabilities
• Compact surface-mount form factor
• Wide operating temperature stability

Applications

• 10/100 Base-T network interfaces
• Fiber channel signal processing
• Telecommunications equipment

Procurement Notes

Verify the specific datasheet version and pinout configuration before integration. Confirm that the 16-pin layout matches your PCB footprint requirements. Ensure the -40°C to +85°C thermal rating aligns with your system's environmental conditions. Check for RoHS compliance documentation if required by your manufacturing standards.

Selection Notes

Select this component when designing for 10/100 Base-T Ethernet applications requiring integrated LAN filtering. The 1CT:1CT ratio suits standard isolation needs. Consider the physical dimensions for space-constrained layouts. Verify compatibility with non-PoE power schemes as this module does not support Power over Ethernet.

Part Context

Allied Components International specializes in magnetic components and modules. This part belongs to their LAN and telecom magnetics line. The company focuses on industry-standard and custom magnetic solutions. The AT1619CI serves as a specialized filter module for network connectivity.

FAQ

Does the AT1619CI support Power over Ethernet?

No, the specifications indicate it is designed for non-PoE applications.

What is the maximum operating temperature?

The component operates up to +85°C.
