AT24C32CY6-YH-T

Memory IC Overview

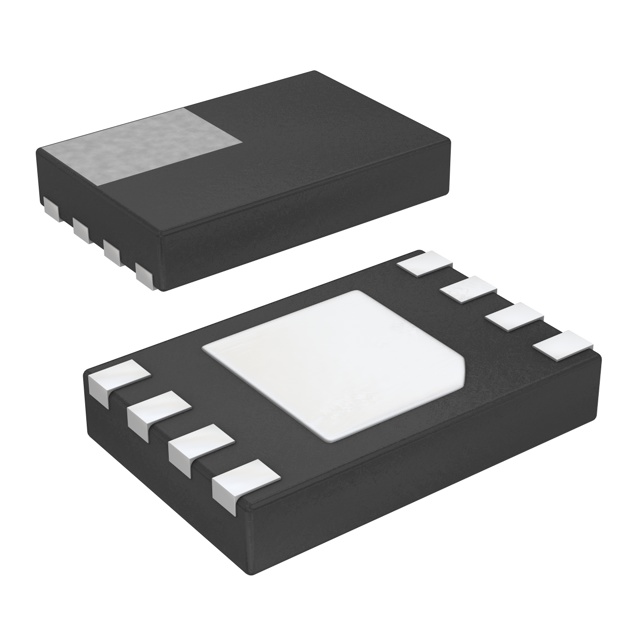

The AT24C32CY6-YH-T is a 32-kbit (4096 x 8) serial EEPROM manufactured by Microchip Technology. It utilizes a 2-Wire I2C interface with a maximum clock frequency of 1 MHz. The device operates within a supply voltage range of 1.8 V to 5.5 V, supporting both low-voltage and standard-voltage applications. Key electrical specifications include an access time of 550 ns and a maximum supply current of 3 mA. It is housed in an 8-Mini Map surface-mount package.

Memory IC Feature Summary

• Supports 2-Wire Serial Interface for simplified connectivity
• Operates across wide voltage range from 1.8 V to 5.5 V
• High-speed synchronous operation up to 1 MHz clock frequency

Memory IC Applications

• Data storage in consumer electronics
• Configuration memory in industrial control systems
• Parameter storage in automotive modules

Memory IC Procurement Notes

Verify the specific suffix 'YH-T' corresponds to the required tape-and-reel packaging quantity and lead time requirements. Confirm that the 1.8V to 5.5V operating range aligns with your system's power rails. Ensure the 8-Mini Map package footprint matches your PCB layout constraints before finalizing procurement orders.

Memory IC Selection Notes

Select this component when a compact 32-kbit non-volatile memory solution is required with I2C compatibility. The 1 MHz speed supports high-throughput data logging. The wide voltage range allows direct interfacing with various logic levels without level shifters. Consider the 8-pin Mini Map package for space-constrained designs requiring surface-mount assembly.

Memory IC Part Context

This part belongs to the AT24C32 family of 2-Wire Serial EEPROMs. It provides reliable non-volatile data retention for applications requiring frequent write cycles. The device integrates a hardware write-protect feature to prevent accidental data corruption. It is designed for use in environments requiring robust data storage with minimal pin count.

Memory IC Replacement Considerations

Check for compatible parts within the AT24C32 series with different package options if footprint changes are acceptable. Verify that substitute components maintain the same 1 MHz I2C speed and 1.8V minimum operating voltage. Ensure any replacement offers equivalent write cycle endurance and data retention specifications.
