AT45DB081-RC

Memory IC Overview

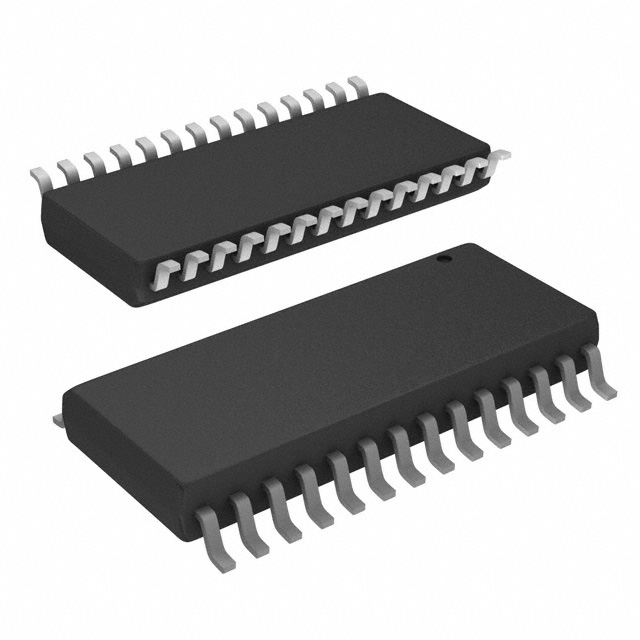

The AT45DB081-RC is a non-volatile NOR Flash memory device manufactured by Microchip Technology. It offers a storage capacity of 8 Mbit, organized as 264 bytes per page across 4096 pages. The component utilizes an SPI interface with a maximum clock frequency of 10 MHz and operates within a supply voltage range of 4.5 V to 5.5 V. Designed for surface mount installation, it is housed in a 28-SOIC package and supports a commercial operating temperature range of 0°C to 70°C.

Memory IC Feature Summary

• Serial Peripheral Interface (SPI) communication protocol
• Non-volatile NOR Flash memory architecture
• Page-based organization with 264-byte page size
• Surface Mount Device (SMD/SMT) packaging

Memory IC Applications

• Embedded system code storage
• Data logging applications
• Industrial control systems
• Microcontroller program memory

Memory IC Procurement Notes

Verify the specific suffix 'RC' against the manufacturer's current datasheet to confirm the exact temperature grade and package variant. Confirm availability status as this part number may be subject to discontinuation or lifecycle changes. Ensure the host system voltage matches the required 4.5V to 5.5V operating range before integration.

Memory IC Selection Notes

Select this component when a 5V logic interface is required for SPI flash memory. The 28-SOIC package is suitable for standard PCB layouts requiring through-hole or wide SMT footprints. Consider the 10 MHz speed limit for high-frequency data transfer requirements compared to faster DataFlash alternatives.

Memory IC Part Context

This device belongs to the broader family of serial NOR Flash memories from Microchip Technology. It provides reliable non-volatile storage for embedded applications requiring byte-level access capabilities via the SPI bus. The 8 Mbit density balances storage needs with cost-effectiveness for mid-range microcontroller systems.

Memory IC Replacement Considerations

Check for direct pin-compatible replacements such as the AT45DB081D series if higher speed or different voltage operation is needed. Verify that any substitute maintains the 28-SOIC package and 5V operating voltage specifications.
