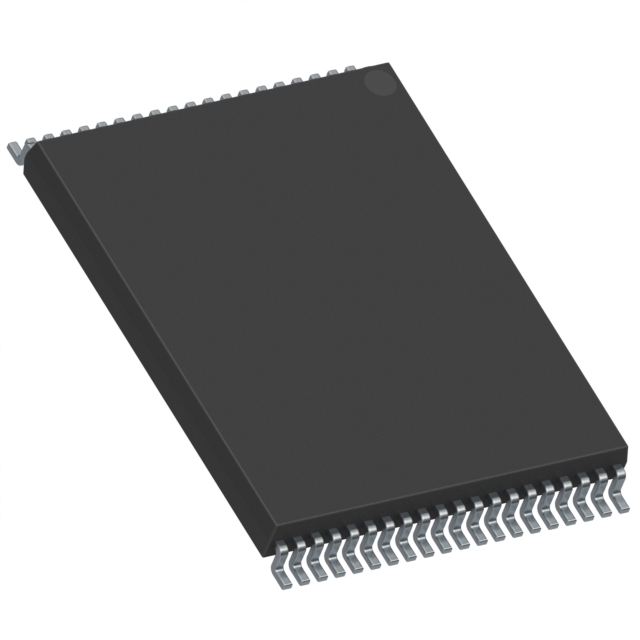

AT49F516-70VI is listed in the Memory IC range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is IC FLASH 512KBIT PARALLEL 40VSOP. Review the specifications below when checking this part for your BOM.
The AT49F516-70VI is a 5-volt only in-system programmable and erasable Flash Memory manufactured by Atmel. It provides 512K of memory organized as 32,768 words by 16 bits. The device features a fast read access time of 70 ns and operates within an industrial temperature range of -40°C to +85°C. It utilizes a 44-Lead Plastic J-Leaded Chip Carrier (PLCC) package. Key specifications include a typical word programming time of 10 µs per word, a maximum erase cycle time of 10 seconds, and support for up to 10,000 write cycles.
Verify the manufacturer designation, as this component was originally produced by Atmel before its acquisition by Microchip Technology. Confirm the specific suffix 'VI' corresponds to the 70 ns speed grade and the Industrial (-40°C to +85°C) operating temperature range. Ensure the PLCC-44 package type matches the design requirements. Cross-reference the ordering code against current distributor catalogs to confirm availability and exact datasheet revision alignment.
Select this component when a 512K x 16-bit Flash memory architecture is required for applications needing in-system reprogrammability without high voltage generation. The 70 ns access time suits moderate-speed embedded systems. Consider the 8K word boot block feature if secure system startup code protection is necessary. Verify that the 5V-only power supply constraint aligns with the target system's voltage rails.
This part belongs to the AT49F516 series of 5-volt Flash memories. It is functionally similar to other devices in the family but distinguished by its 70 ns access speed and industrial temperature rating. The 'VI' suffix specifically denotes the speed bin and temperature range within the broader product line.
Compatible substitutes include AT49F516-55VI for faster access or AT49F516-90VI for relaxed timing requirements, provided the package and pinout remain identical. Other 512K x 16-bit 5V Flash memories may require logic level translation or timing adjustments.
The lockout is enabled by executing a specific six-command sequence involving writing AA to address 5555H, 55 to 2AAA H, 80 to 5555H, followed by another AA/55 pair, and finally 40 to 5555H.
The end of a program cycle can be detected via Data Polling, where I/O7 outputs the complement of the loaded data, or via the Toggle Bit on I/O6, which stops toggling once the cycle completes.
