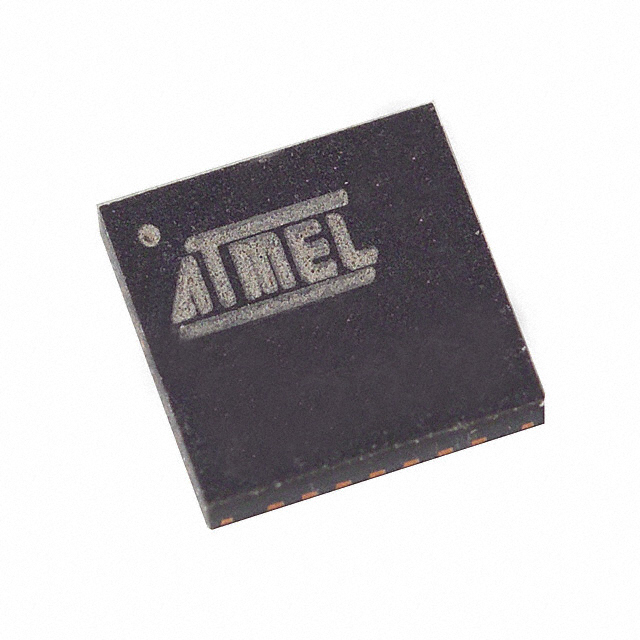

ATA6830-PKH

$3.13

Description：IC MTR DRVR BIPOLAR 7-20V 28QFN
Series：-
Mfr：Microchip Technology
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3501166183d3 Category: Motor Drivers, Controllers Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC MTR DRVR BIPOLAR 7-20V 28QFN
Series：-
Mfr：Microchip Technology
Package：Tape & Reel (TR),Cut Tape (CT)
Motor Type - Stepper：Bipolar
Motor Type - AC, DC：-
Function：Driver - Fully Integrated, Control and Power Stage
Output Configuration：Half Bridge (4)
Interface：Serial
Technology：NMOS, PMOS
Step Resolution：-
Applications：-
Current - Output：1.1A
Voltage - Supply：7V ~ 20V
Voltage - Load：7V ~ 20V
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：28-VQFN Exposed Pad
Supplier Device Package：28-QFN (7x7)
Grade：Automotive
Qualification：-

Download product information

ATA6830-PKH

Overview

The ATA6830-PKH is a motor driver IC from Microchip Technology designed for wearable devices and IoT platforms. It features an efficient architecture with NMOS and PMOS technology, supporting a supply voltage range of 7V to 20V and load voltage of 7V to 20V. The device provides an output current of 1.1A and utilizes a serial interface. Packaged in a 28-QFN format, it operates within a junction temperature range of -40°C to 150°C.

Feature Summary

Efficient motor controller optimized for wearable devices and IoT platforms
Integrated half-bridge configuration with internal FETs
Serial interface control for simplified system integration

Applications

Wearable devices
IoT platforms
Smart lighting applications
Automotive applications

Procurement Notes

Verify the specific package marking and date code against the official Microchip datasheet to ensure authenticity. Confirm that the operating environment stays within the specified -40°C to 150°C junction temperature limits. Check for any RoHS compliance documentation required by your region. Ensure the serial interface signals match the voltage levels supported by the host microcontroller.

Selection Notes

Select this component when designing compact power management solutions for small-scale robotic projects or wearable electronics. It is suitable for bipolar stepper motor control requiring a 1.1A output capability. Consider the 28-QFN package for space-constrained PCB layouts. Verify compatibility with the 7V to 20V supply range before finalizing the design.

Part Context

This part belongs to the ATA68xx series of motor drivers from Microchip Technology. It is categorized under PMIC - Power Management ICs and specifically Motor Drivers, Controllers. The device is distinct from evaluation boards like the ATA6831-DK, serving as the core integrated circuit for motor control applications rather than a development kit.
